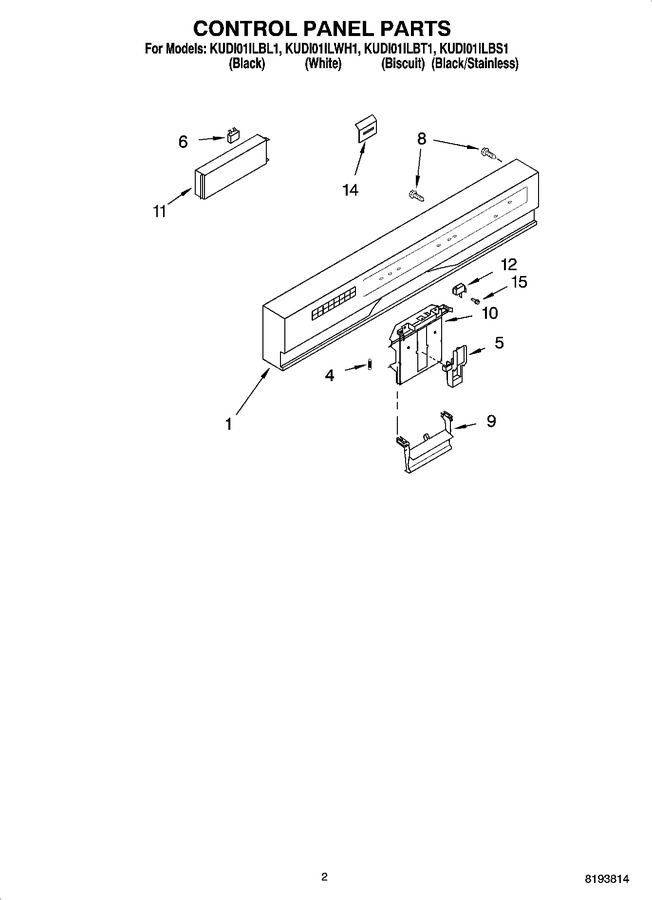

02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


12 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Find a Video
1	W10757829		Console Asm. Includes Active Overlay & Insert (black)   (Replaces:8531539)
	WP8531240		Console Asm. Includes Active Overlay & Insert (white)   (Replaces:8531540)
	WP8531241		Console Asm. Includes Active Overlay & Insert (biscuit)   (Replaces:8531541)
4	WP8268540		Spring, Handle
5	WP8524471		Actuator, Latch
6	8193762		Fuse, Thermal Electronic   (Replaces:8269213)
8	WPW10348409		Screw (6)   (Replaces:3369051)
9	WP8269117		Handle, Latch (biscuit)   (Replaces:8269168)
10	8193882		Bolt, Latch   (Replaces:8524476)
11	WP8564543		Control, Electronic   (Replaces:8534866)
12	WP8269209		Switch, Door
14	8268547		Shield
15	WP3400412		Screw
