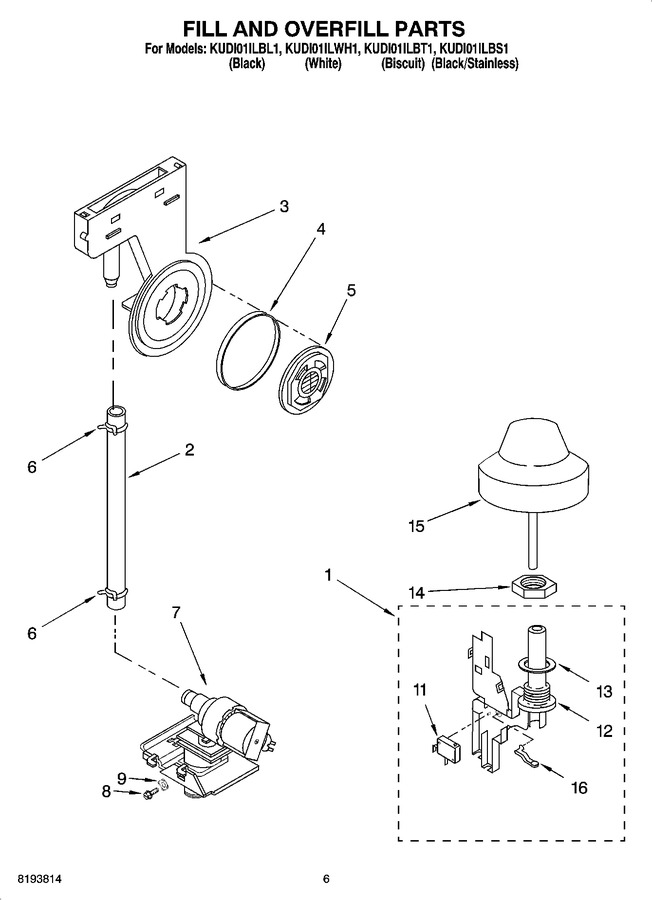

Diagram #	Part Number		Description	Series	Find a Video
1	8193506		Control, Overfil Assembly   (Replaces:8268889)
2	WP8269242		Hose, Inlet
3	8193508		Water Inlet Assembly (includes Items 4 & 5)   (Replaces:8269240)
4	WP8269241		Gasket
5	WP8269243		Bezel, Inlet   (Replaces:8269268)
6	301958		Clamp, Hose
7	WP8531669		Fill Valve Assembly
8	WP3400014		Screw
9	WP3378128		Washer
11	WP8268909		Switch, Overfill Control
12	8193506		Standpipe, Overfill   (Replaces:8268891)
13	WP8531743		Gasket, Flat   (Replaces:4161670)
14	WP9741998		Nut, Standpipe
15	WP8268895		Float & Retainer Assembly
16	WP8268892		Lever, Overflow Switch
