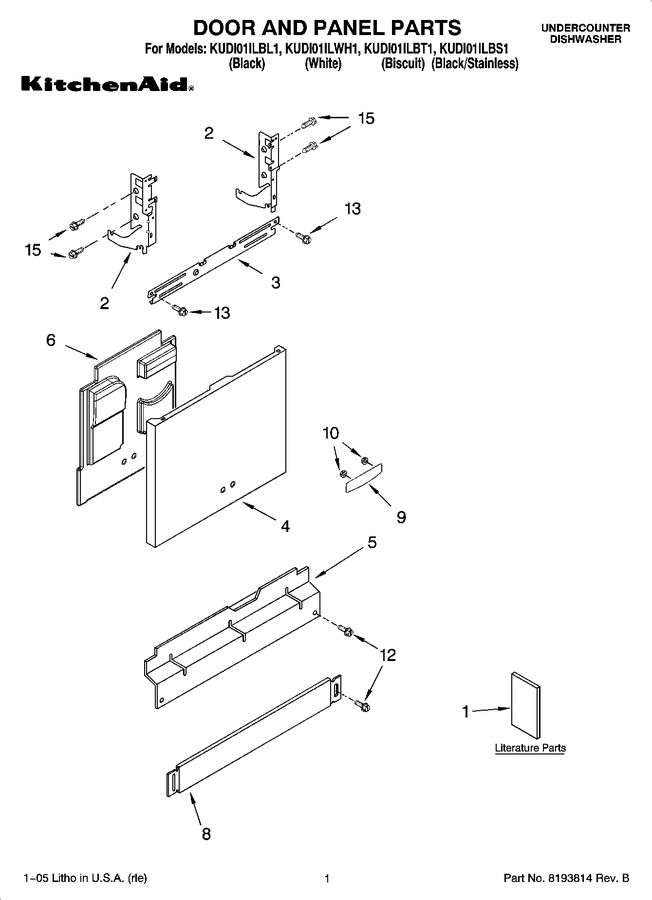

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | LIT8537797 | Literature Parts (english/french) | ||||
LIT8524480 | Literature Parts (instructions, Installation) | |||||
LIT8531624 | Literature Parts (energy Guide) | |||||
LIT8531527 | Literature Parts (guide, Use & Care Tech Sheet) | |||||
2 | WP8534853 | Arm, Hinge (right) | ||||
W11612302 | Arm, Hinge (left) (Replaces:8534854) | |||||
3 | WP8268983 | Stiffener, Door | ||||
4 | 8270086 | Panel Front (includes Item 6) (biscuit) | ||||
8270088 | Panel Front (includes Item 6) (stainless) | |||||
8270085 | Panel Front (includes Item 6) (white) | |||||
W10349345 | Panel Front (includes Item 6) (black) (Replaces:8270084) | |||||
5 | W10909064 | Access Panel (black) (Replaces:8268994) | ||||
WPW10195779 | Access Panel (biscuit) (Replaces:8268996) | |||||
W10909066 | Access Panel (white) (Replaces:8268995) | |||||
6 | 8531330 | Brace, Foam | ||||
8 | W10871196 | Toe Panel (black) (Replaces:8268999) | ||||
W10586592 | Toe Panel (biscuit) (Replaces:8269001) | |||||
WPW10586591 | Toe Panel (white) (Replaces:8269000) | |||||
9 | 2005292 | Nameplate | ||||
10 | WP2004333 | Nut | ||||
12 | 3400865 | Screw (biscuit) | ||||
WP3400836 | Screw (white) | |||||
WP302868 | Screw Black | |||||
13 | WP489069 | Screw (Replaces:304392) | ||||
15 | WP3400071 | Screw (2) |
