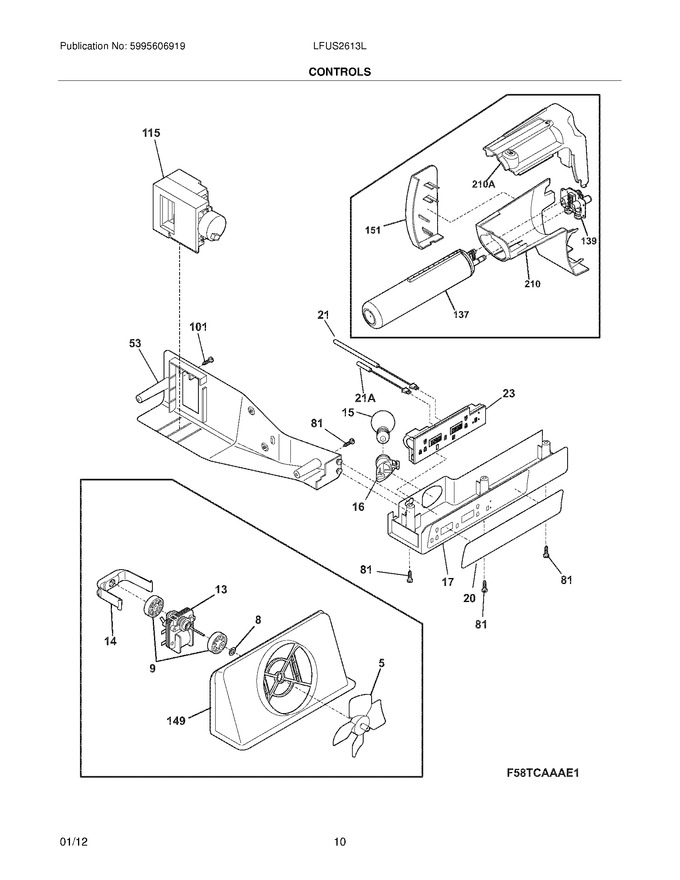

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |  |
|||
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft | |
|||
| 9 | 241563601 | Bushing-motor Mtg | |
|||
| F13 | 242077705 | Motor-blower,13 (Replaces:242077701) | |
|||
| 14 | 242135301 | Clip,evap Fan Motor (Replaces:241517701) | |
|||
| 15 | 316538904 | Light Bulb (Replaces:241555401) | |
|||
| F16 | 218906802 | Socket-light (Replaces:241513901) | |
|||
| 17 | 241633511 | Box-control,front (Replaces:241633505) | |
|||
| 20 | 241604011 | Label-control Box (Replaces:241604006) | |
|||
| F21 | 241608401 | Thermistor-refr | |
|||
| F23 | 241739710 | Board-control,temp Control (Replaces:241739702) | |
|||
| 53 | 241608902 | Box-control (Replaces:241608901) | |
|||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile | |
|||
| 101 | 241637202 | Screw,no.8ab X 1 3/4`` | |
|||
| 115 | 241600906 | Damper Assy,w/seal (Replaces:241600905) | |
|||
| 137 | WF3CB | Filter-water,carbon (Replaces:242069601) | |
|||
| 139 | 242009602 | Base-water Filter (Replaces:242009601) | |
|||
| 149 | 242204506 | Shroud-fan Orfice (Replaces:241563501) | |
|||
| F149 | 241528303 | Seal,shroud (Replaces:241528306) | |
|||
| 151 | 242069701 | Cover-water Filter | |
|||
| 210 | 241983814 | Housing-water Filtr (Replaces:241983803) | |
|||
| F210 | 241998303 | Mount-water Filter (Replaces:241998302) | |
|||
| F21A | 241608501 | Thermistor-frzr | |
|||
| FNI | 241737801 | Harness-wiring,control Box | |
|||
| NI | 5304535377 | Tape,aluminum ,3`` Wide (Replaces:240570304) | |
|||
| 5304521761 | Harness-wiring (Replaces:242091801) | |
