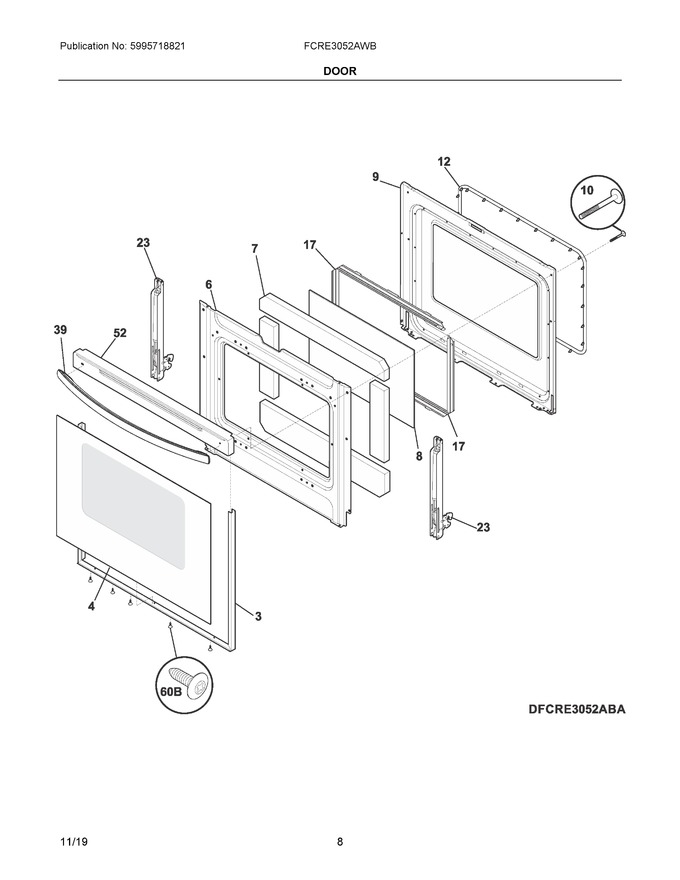

Diagram #	Part Number		Description	Series	Find a Video
3	5303935318		Trim Kit-door, 3 Sided, White, W/tape   (Replaces:5303935393)
4	316559108		Glass Assembly, Outer, White
6	316406328		Shield-wool   (Replaces:316406312)
8	5304503232		Glass, Oven Door, Inner
9	316423707		Liner, Oven Door
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.
12	316405000		Seal, Oven Door
17	5304504811		Spacer, Glass
23	316575909		Hinge, Oven Door, Black
39	5304522047		Handle, Door
52	316575500		Cap, Door Trim, White
60B	316021109		Screw, 8-18 X 0.5, Chrome
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*
	316483102		Label, Anti-tip
	316021105		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black
