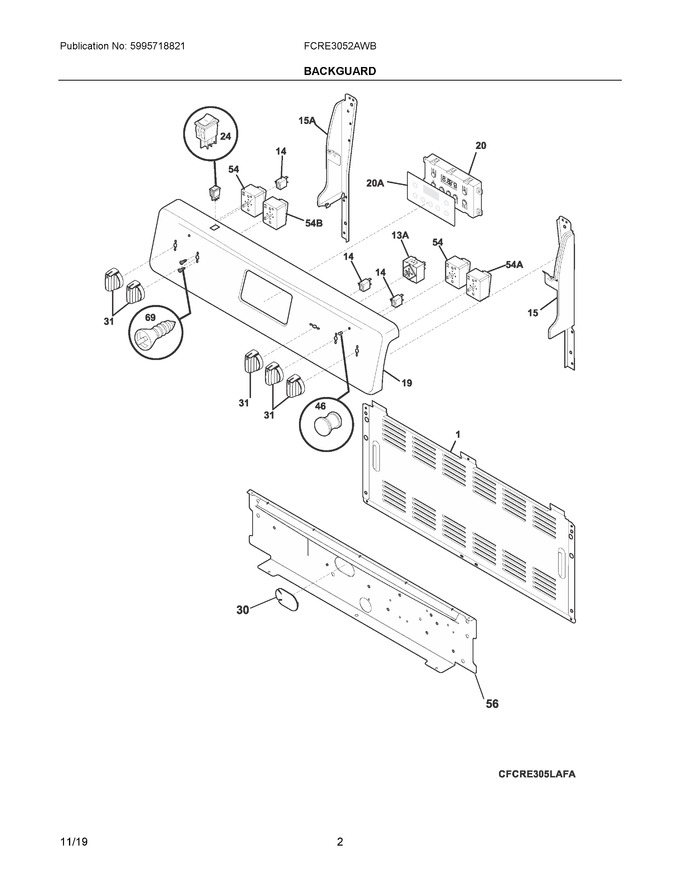

Diagram #	Part Number		Description	Series	Find a Video
1	316281802		Shield, Backguard, Rear Wall
14	316022500		Light/lamp, Indicator, Black, 125 V
15	808754505		Cap, End, White, Rh
19	5304520701		Panel, Control, White
20	5304521889		Control, Electronic, Es100
24	5304527842		Switch, Rocker, White   (Replaces:5304515133)
30	316577600		Plug, Button, Oval, Harness
31	5304508957		Knob, Control, White
46	316557300		Lens-light/lamp, Indicator, Clear
54	316436000		Switch, Control, Small Element   (Replaces:5304506424)
56	316234029		Shield, Backguard, White, Inner
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg
13A	5304522964		Switch, Infinite, Warmer
15A	808754506		Cap, End, White, Lh
20A	316220728		Overlay, Clock, White
54A	316436001		Switch, Infinite, Large Element
54B	140173679014		Switch, Infinite, Radiant Dual   (Replaces:5304522918)
NI	316089500		Screw, 10-16 X .486
	316021105		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black
	316021109		Screw, 8-18 X 0.5, Chrome
	5308014215		Screw, 6-20 X 0.312
