01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

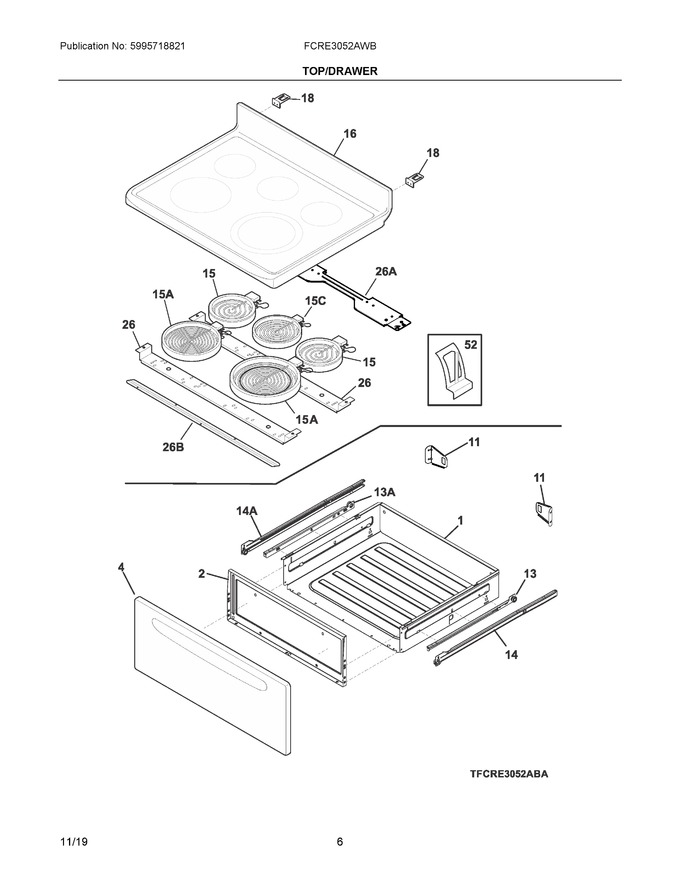

Diagram #	Part Number		Description	Series	Find a Video
1	316408706		Drawer, Utility
2	5304527989		Liner, Drawer   (Replaces:5304511827)
4	5304511973		Panel, Drawer, White, Outer, W/intgr Handle
11	5304517906		Bracket, Rear Support, (2)
13	5304517905		Glide, Drawer, Black, Rh Inner
14	5304517904		Glide, Drawer, Black, Rh Outer
15	318178110		Element, Surface, 6", 1200, (2), Radiant
16	5304514991		Smoothtop, Assembly, Glass/steel, Black/white
18	316580800		Bracket-hinge, Main Top
26	5304512926		Channel, Element Support
43	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*
52	316461700		Clip, Element Mtg
13A	5304517903		Glide, Drawer, Black, Lh Inner
14A	5304517902		Glide, Drawer, Black, Lh Outer
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces:316282000)
15C	5304521951		Element, Warmer, 100 W
26A	316498200		Bracket-support, Chassis, Aluminum
26B	316607600		Bracket, Chassis Support, Front
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black
	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2
	316089500		Screw, 10-16 X .486
	316021109		Screw, 8-18 X 0.5, Chrome
	316021105		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black
	5304522950		Harness, Surface
	316001003		Screw, Ground Wire
	316418901		Screw, Trilobe, 10-32 X 5/16", Black
NIA	5308014215		Screw, 6-20 X 0.312

    View Diagram in Separate Window       Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand
