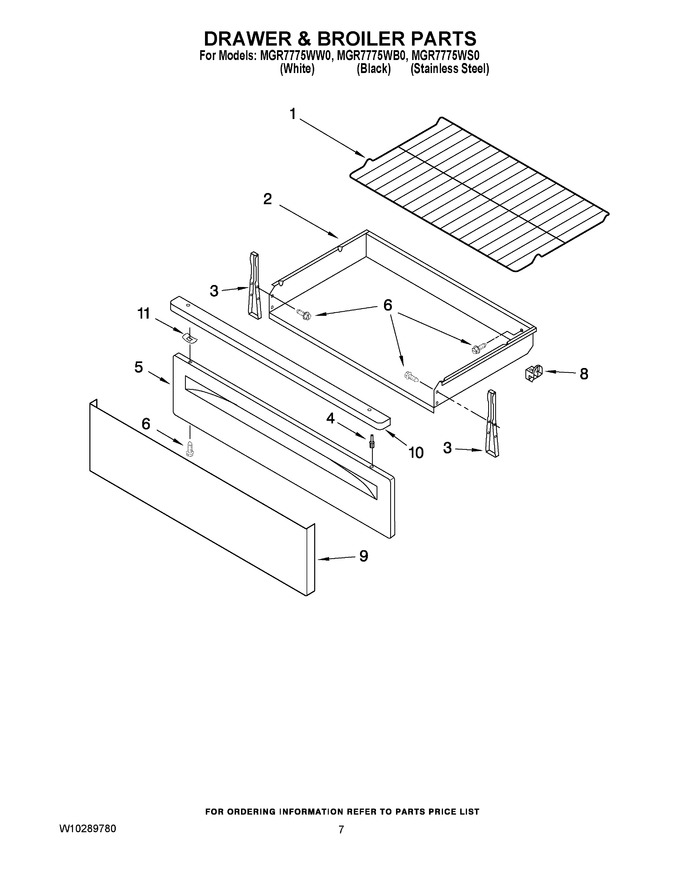

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W11520287 | Rack, Oven (2) (Replaces:W10268578) | ||||
2 | W10296838 | Drawer, Storage (Replaces:9761031) | ||||
3 | W10174397 | Bracket, Drawer(2) | ||||
4 | WP3196814 | Rivet, Push (2) (white) | ||||
WP3196813 | Rivet, Push (2) (black) | |||||
5 | W11230490 | Panel, Drawer Frnt (black) (Replaces:W10022100) | ||||
W11230486 | Panel, Drawer Frnt (white) (Replaces:W10022090) | |||||
6 | WP3400832 | Screw (Replaces:3196168) | ||||
8 | WP8053334 | Spacer, Glide | ||||
9 | WPW10244872 | Panel, Stainless (Replaces:W10217861) | ||||
10 | WPW10197980 | Handle, Stainless | ||||
11 | WP9781235 | Clip |
