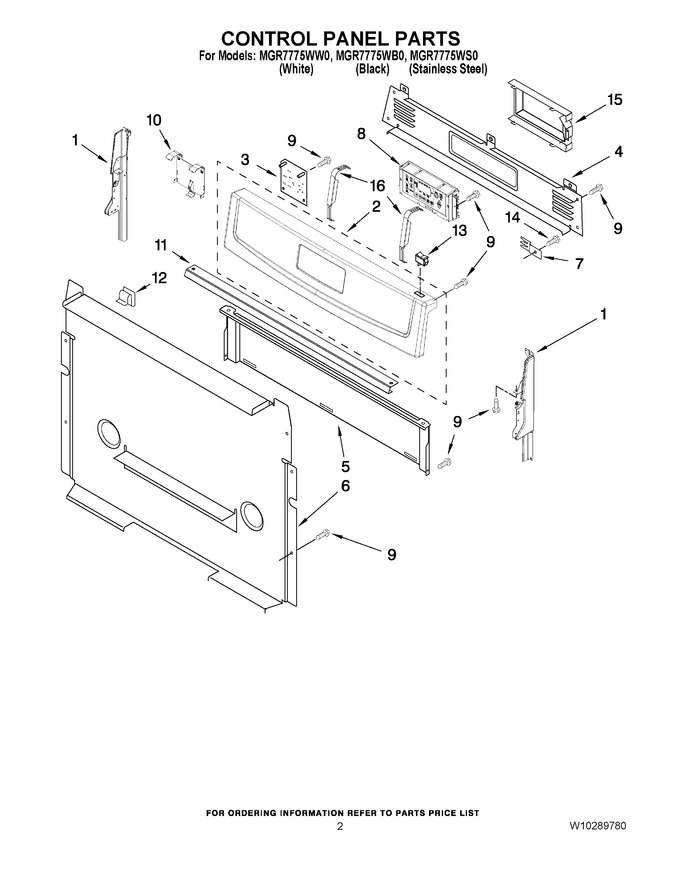

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W11219664 | Endcap, Left Hand (black) (Replaces:W10184437) | ||||
W11219370 | Endcap, Right Hand (white) (Replaces:W10184434) | |||||
W11219665 | Endcap, Right Hand (black) (Replaces:W10184438) | |||||
W11219365 | Endcap, Left Hand (white) (Replaces:W10184433) | |||||
2 | W10292034 | Panel, Control (white) (Replaces:W10225553) | ||||
W10292035 | Panel, Control (black) (Replaces:W10225554) | |||||
WPW10292036 | Panel, Control (stainless Model) (Replaces:W10225555) | |||||
3 | WPW10331686 | Module, Spark (Replaces:9758080) | ||||
4 | W10198745 | Cover, Upper | ||||
5 | W10192841 | Shield, Heat | ||||
6 | W10184251 | Cover, Back | ||||
7 | 8523412 | Bracket, Support | ||||
8 | WPW10236272 | Control, Range (white) | ||||
WPW10271780 | Control, Range (black) (Replaces:W10236273) | |||||
9 | W11233072 | Screw (Replaces:3196178) | ||||
10 | W10516463 | Brkt-mntg, Dsi (Replaces:W10137524) | ||||
11 | W10525122 | Brkt-mntg, Console (Replaces:W10211996) | ||||
12 | WP8273564 | Clip | ||||
13 | WP4314961 | Switch, Rocker (black) (Replaces:3148564) | ||||
3149360 | Switch, Rocker (white) | |||||
14 | WP3196557 | Screw (Replaces:3196169) | ||||
15 | W10158780 | Cover | ||||
16 | W11230932 | Bracket, Eoc (Replaces:W10138683) |
