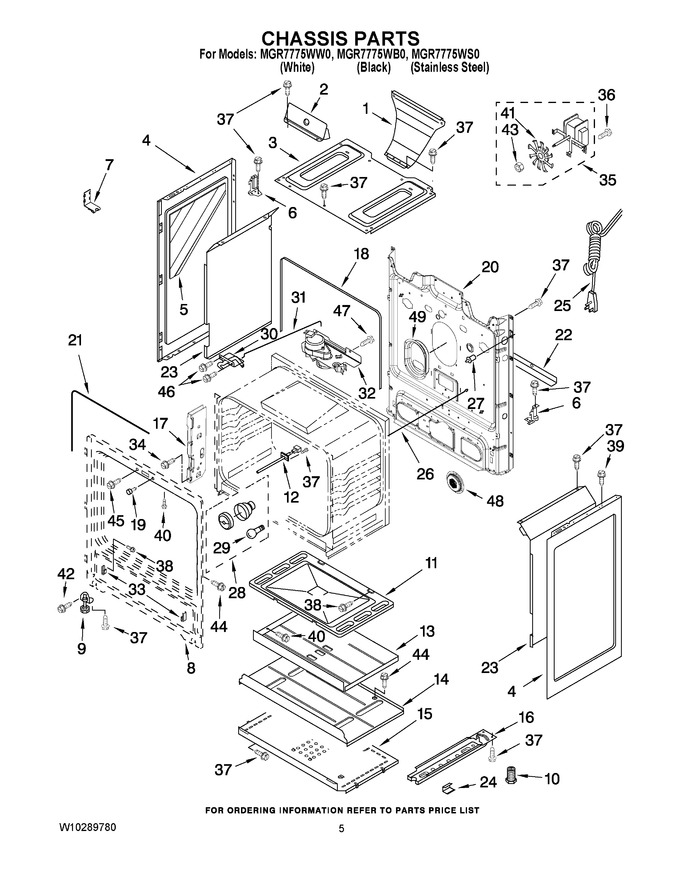

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11457094 | Flue Box (Replaces:W10153186) |  |
|||
| 2 | WP8272747 | Shield, Flue | |
|||
| 3 | WP8273036 | Burner Box | |
|||
| 4 | W11727013 | Panel, Side (2) (white-textured) (Replaces:8053830) | |
|||
| W11730303 | Panel, Side (2) (black) (Replaces:8053832) | |
||||
| 5 | W10182346 | Insulation | |
|||
| 6 | 8523249 | Brkt, Manifold Mtg | |
|||
| 7 | W10137382 | Clip, Mounting | |
|||
| 8 | N/P | Frame, Front (not Serviced) | |
|||
| 9 | WP3196037 | Foot, Front (2) | |
|||
| 10 | WPW10058460 | Foot, Rear (2) | |
|||
| 11 | WP3195097 | Bottom, Oven | |
|||
| 12 | WPW10181986 | Sensor, Oven | |
|||
| 13 | 8053967 | Baffle, Burner | |
|||
| 14 | 8053969 | Shield, Heat | |
|||
| 15 | 8053505 | Shield, Lower | |
|||
| 16 | WP9760314 | Rail, Base (2) | |
|||
| 17 | W10647259 | Brkt-mounting (Replaces:9760407) | |
|||
| 18 | W10008830 | Seal, Oven Flange | |
|||
| 19 | W10877054 | Spacer, Door (Replaces:9758701) | |
|||
| 20 | W10134118 | Back, Main | |
|||
| 21 | W11542153 | Seal, Oven (Replaces:8522416) | |
|||
| 22 | 8053971 | Brace, Main Back | |
|||
| 23 | 9761449 | Retainer, Insul. (left Hand) | |
|||
| 9761448 | Retainer, Insul. (right Hand) | |
||||
| 24 | W10137382 | Clip, Panel (6) | |
|||
| 25 | W11582239 | Cord, Power (Replaces:9757891) | |
|||
| 26 | 9757239 | Rod - Dr Switch | |
|||
| 27 | W11243424 | Switch, Door (Replaces:9757238) | |
|||
| 28 | W11594027 | Light Socket Assy (Replaces:3196701) | |
|||
| 29 | 8009 | Bulb, Oven Light (Replaces:311255) | |
|||
| 30 | WP9761013 | Latch, Door | |
|||
| 31 | W10078370 | Rod, Latch | |
|||
| 32 | WPW10107830 | Latch-mtr | |
|||
| 33 | WPW10114344 | Glide, Drawer | |
|||
| 34 | W10777162 | Screw (Replaces:W10031780) | |
|||
| 35 | W11676354 | Fan Motor, Conv (Replaces:W10167915) | |
|||
| 36 | WP4449809 | Screw | |
|||
| 37 | W11233072 | Screw (Replaces:3196178) | |
|||
| 38 | WP3196152 | Screw | |
|||
| 39 | WP3400832 | Screw (black) (Replaces:3196168) | |
|||
| 3196166 | Screw (white) | |
||||
| 40 | W11233072 | Screw (Replaces:3196176) | |
|||
| 41 | W10758272 | Fan Blade (Replaces:W10116351) | |
|||
| 42 | WP98008545 | Screw (Replaces:3196179) | |
|||
| 43 | WPW10116349 | Nut | |
|||
| 44 | WP7101P246-60 | Screw (Replaces:3196177) | |
|||
| 45 | WP3400832 | Screw (Replaces:3196168) | |
|||
| 46 | W11169708 | Screw (Replaces:3196560) | |
|||
| 47 | W10491985 | Screw (Replaces:3196160) | |
|||
| 48 | WPW10134124 | Cover, Fan | |
|||
| 49 | W10134126 | Bracket, Fan | |
|||
| NI | W11684915 | Insulation, Wrap (Replaces:8524099) | |
|||
| 8053915 | Insulation, Vent (Replaces:8272613) | |
||||
| W10180437 | Insulation, Back | |
