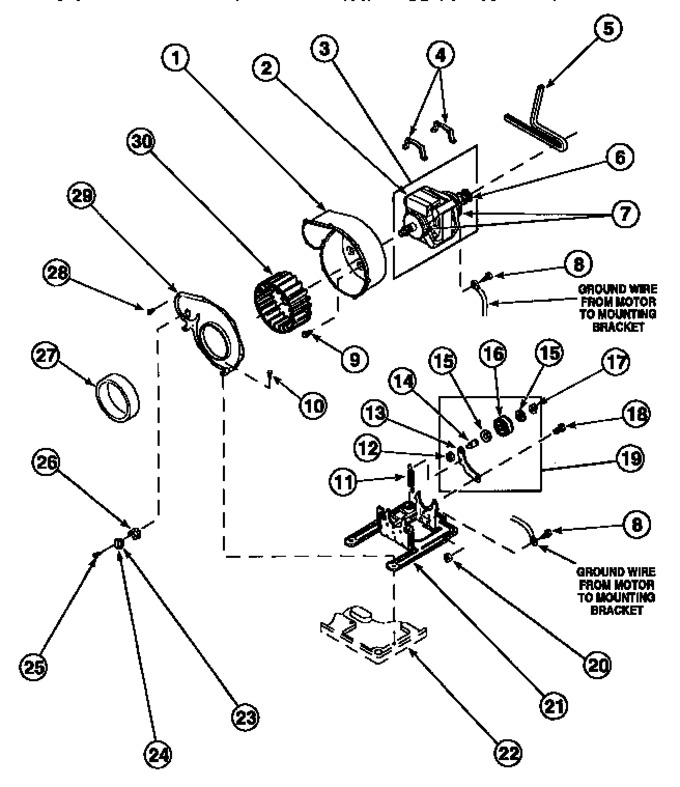

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | D511969WP | Housing, Blower (Replaces:56020) | ||||
2 | 501218 | Kit, Switch Motor | ||||
3 | WP2200376 | Assembly, Motor & Pulley (Replaces:501211) | ||||
4 | WP660658 | Clamp, Motor Mount (Replaces:Y58047) | ||||
5 | WP40111201 | Belt, Cylinder (Replaces:59174) | ||||
6 | 500011 | Pulley,motor | ||||
7 | 590P3 | Kit, Mtr Hub Ring | ||||
8 | WP3351614 | Screw, 10-24x3/8 Hex (Replaces:20530) | ||||
9 | WP27001200 | Screw-10 16 X.44 (Replaces:Y31645) | ||||
10 | WP27001200 | Screw (Replaces:33562) | ||||
11 | WP56076 | Spring, Idler | ||||
12 | 56156 | Nut, 3/8-16 Serrated | ||||
13 | WP37001144 | Lever, Idler (Replaces:500910) | ||||
14 | WP56461 | Shaft | ||||
15 | 52549 | Washer, 501 Id X3/4 Odx | ||||
16 | WPY54414 | Assembly, Wheel & Bearing | ||||
17 | 23748 | Ring, Retaining | ||||
18 | 500824 | Screw, 1/4-20 Unc Hex | ||||
19 | WP37001287 | Assy, Idler Lever (Replaces:500269) | ||||
20 | WPW10139757 | Nut, Hex Jam 1/4-20l (Replaces:52566) | ||||
21 | 500822 | Mount, Motor | ||||
22 | 500070 | Base, Dryer | ||||
24 | WPY61372 | Thermostat | ||||
503551 | Thermostat, Cycling | |||||
25 | 23222 | Screw, 8b-18 X 1/4 He | ||||
WP489464 | Screw (Replaces:Y33561) | |||||
26 | WP61623 | Thermostat Heater (Replaces:61401) | ||||
27 | 500313 | Seal,blower Hsg | ||||
28 | 31260 | Screw, No.8 X 3/8 Ind H | ||||
29 | 500078 | Cover, Blower Housing | ||||
30 | 56000 | Assembly, Blower Fan |
View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
