01 - Cabinet Top And Control Hood Rear Panel


02 - Cabinet, Exhaust Duct And Base


03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


04 - Gas Valve, Igniter & Gas Conversion Kits


05 - Graphic Panel, Control Hood And Controls


06 - Graphic Panel, Control Hood And Controls


07 - Graphic Panel, Control Hood And Controls


08 - Graphic Panel, Control Hood And Controls


09 - Graphic Panel, Control Hood And Controls


10 - Heater Box Assy Originally On Elec Dryer


11 - Heater Box Assy Originally On Gas Dryer


12 - Heater Box Assy Replacement


13 - Loading Door With Drying Rack


14 - Lower Access Panel, Front Panel And Seal


15 - Motor, Exhaust Fan And Belt


16 - Page 21


17 - Power Cords


18 - Power Cords


19 - Rear Blkhd/seal/cylinder Roller/term Blk


20 - Terminals


21 - Terminals

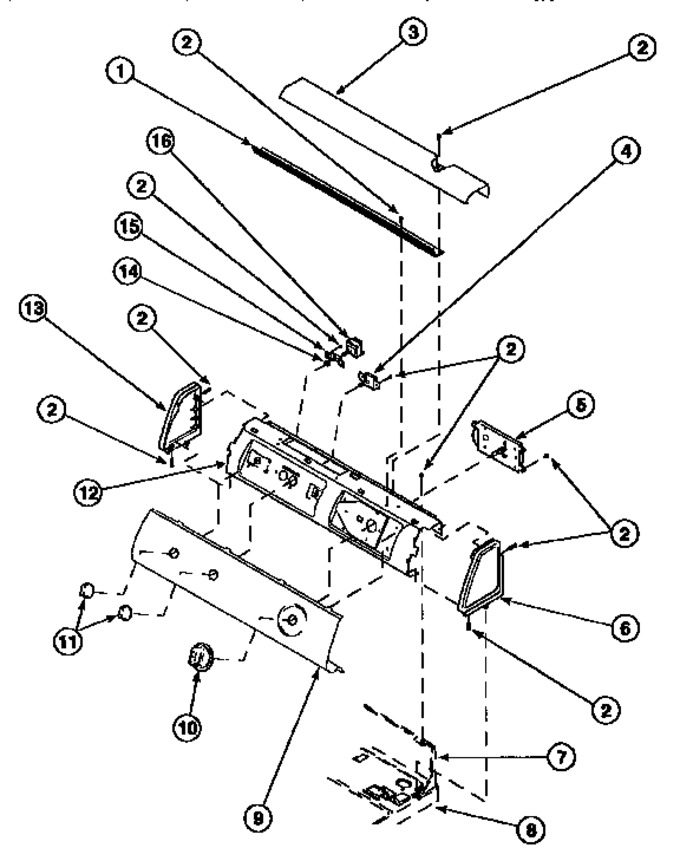

Diagram #	Part Number		Description	Series	Find a Video
1	500305		Diffuser W/out Hole
2	WP90767		Screw, 8b-18x3/8 Slt   (Replaces:501086)
3	500303		Cover, Top
4	500823		Signal,rotary
5	502967		Timer, 5 Cycle
6	34817		End Cap(right)
7	500343		Panel,back(home Hood)
8	500085P		Top
9	502206		Graphic Panel
	502630		Graphic Panel
10	502220		Knob, Timer
11	36701		Knob, Temp
12	500300		Bracket,control Support-mech
13	34818		End Cap(left)
14	57584		Nut
15	59704		Bracket,switch Mount
16	Y61511		Switch,fabric Selector

    View Diagram in Separate Window       Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand
