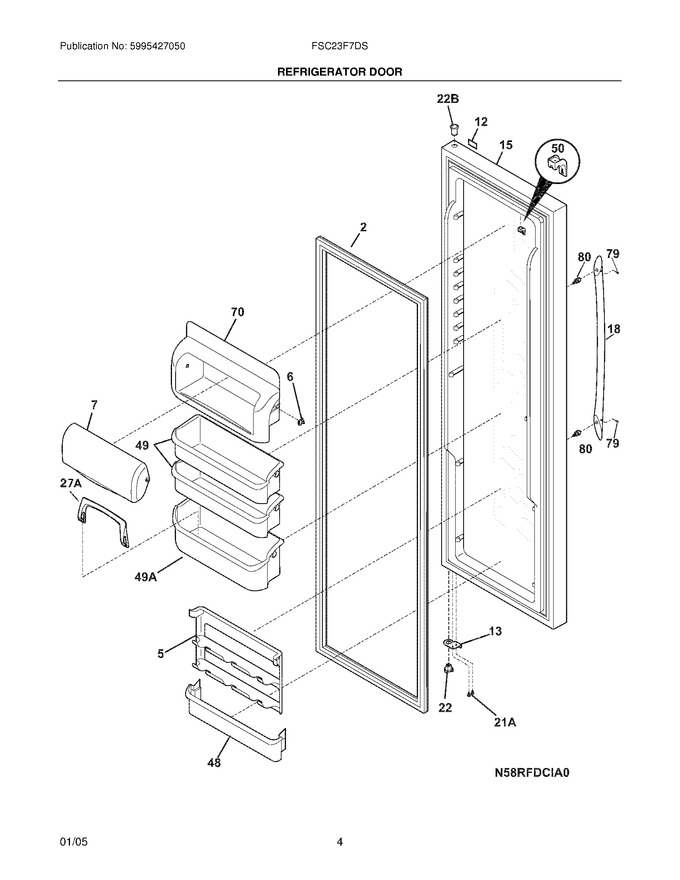

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
F2 | 241510203 | Gasket-refr Door,black ,magnetic | ||||
5 | 241516102 | Rack-can | ||||
6 | 241515901 | Lug-dairy Compartment | ||||
7 | 241515601 | Door-dairy | ||||
12 | 240449710 | Nameplate | ||||
13 | 240581905 | Door Stop,black ,ref | ||||
15 | 241534509 | Door-refr,stainless ,complete Assy | ||||
18 | 240536818 | Handle-door,stainless Steel ,with Insert (Replaces:240536801) | ||||
22 | 240328203 | Bearing-hinge,black ,closer | ||||
48 | 241511701 | Bin-door,ref | ||||
49 | 241505301 | Bin-door,2-liter | ||||
50 | 241508401 | Cover-magnet | ||||
70 | 241515801 | Compartment-dairy,removable | ||||
79 | 218755402 | Screw-set,10-32 X 0.375 | ||||
80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting (Replaces:218755503) | ||||
21A | 240598401 | Screw,10-32 X 1/2 | ||||
22B | 240328404 | Bearing-hinge,black ,upper | ||||
27A | 240396102 | Retainer,tall Bottle | ||||
49A | 241505501 | Bin-door,gallon |
