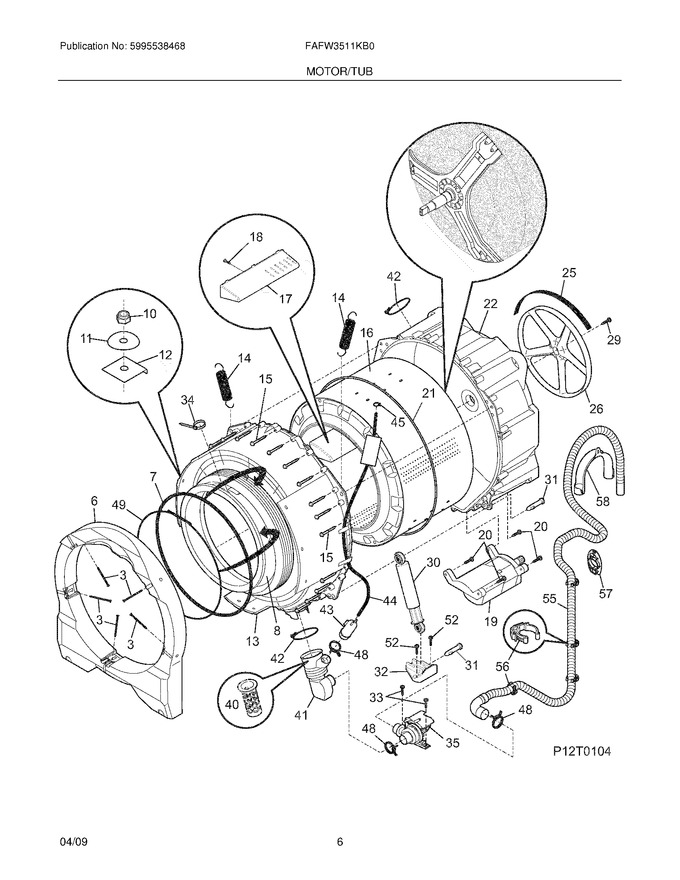

07 - Motor/tub


Diagram #	Part Number		Description	Series	Find a Video
3	131793303		Bolt,carriage ,1/4-20 X 2.60
6	134362200		Counterweight,front ,one Piece
7	134365300		Spring,bellows Clamp ,retainer
F8	134515300		Bellows,boot ,no Light Hole   (Replaces:134740900)
10	137086500		Nut,hex ,1/4-20 Unc-2b ,(2)   (Replaces:131304700)
11	131276900		Washer,bellville ,spring Steel
12	134430600		Plate,counterweight
13	134362000		Shell,tub ,front
F14	137099300		Spring Assy,suspension
15	131303900		Screw,hex Washer Head ,1/4-10a X 2.165
16	137105900		Drum Assy,spin Basket
17	134361602		Vane Kit,drum
18	131302800		Screw,10-16ab X 0.375
F19	137043000		Motor,120 V   (Replaces:134362500)
20	131303500		Screw,12-14ab X 1.50 ,motor Mtg.
21	5304520351		O-ring,tub   (Replaces:134361900)
22	134507120		Shell,outer Tub ,rear ,w/bearing,seal   (Replaces:134509510)
F25	134051003		Belt,drive ,6-rib
F26	5304506264		Pulley,drum Drive ,large ,rear   (Replaces:134362600)
29	134408400		Screw,10.9 Class ,m10 X 25 Mm
30	5304485917		Shock Absorber,assembly   (Replaces:134560410)
31	131268300		Pin,shock Mtg.
32	134363200		Bracket,shock Mtg.
33	134160900		Screw,washer Hd ,10-16ab X 0.75
34	5304464772		Cable Tie,5.60 Inch   (Replaces:5303321209)
35	137221600		Pump,drain   (Replaces:137108100)
40	137518800		Filter,pump   (Replaces:134885800)
41	134455900		Hose,coin Trap ,tub-to-pump
42	134737300		Clamp,hose
43	137089000		Chamber,air   (Replaces:134369000)
44	137089000		Hose,air Pressure   (Replaces:134369900)
45	131306202		Clamp,hose
48	131306234		Clamp,hose ,wire
49	134527100		Clamp,bellows ,spring Held
52	131202300		Screw,10-16ab X 0.625
F55	134889600		Hose,drain-one Piece
56	134781400		Fastener,hose Clip
57	134641100		Bracket,drain Hose Mtg ,rear
58	134440700		Hanger,drain Hose
NI	137166900		Energy Guide
