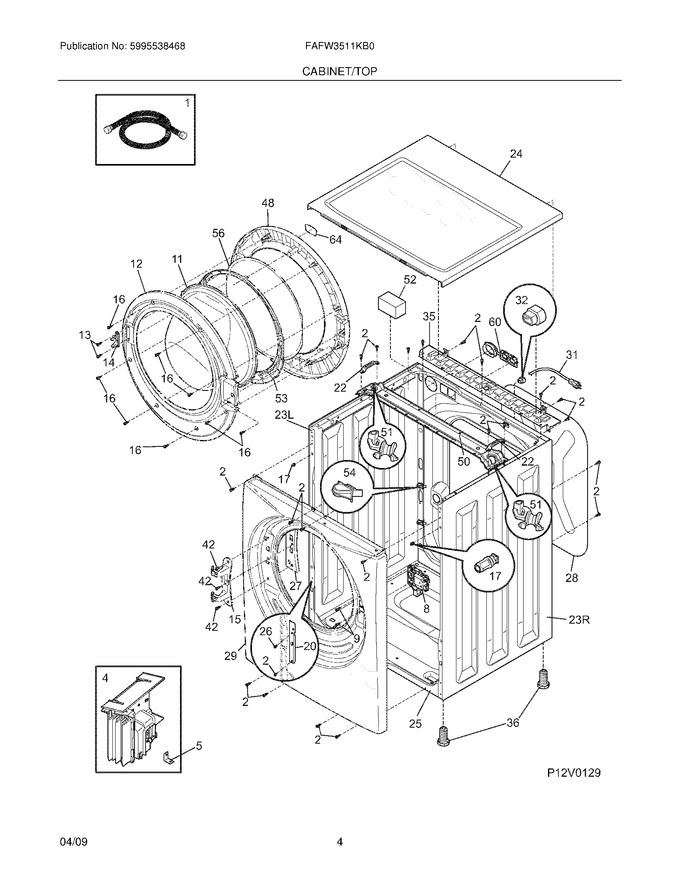

05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Find a Video
1	5303912532		Hose,water Inlet ,4 Ft. ,hose & Washer   (Replaces:131454100)
2	131168200		Screw,pan Head ,8-18b X 0.31
F4	134743500		Control Board,motor   (Replaces:134409904)
5	134522900		Bracket,angle ,motor Control
F8	131763256		Door Lock/switch Assy   (Replaces:131763245)
9	131302800		Screw,pan Head ,10-16ab X 0.500 ,locking   (Replaces:131303300)
11	134366400		Panel,door Glass
12	134550702		Frame,inner Door ,gray
13	131302901		Screw,10-16 X 0.750
14	131763302		Striker,door/lock ,gray   (Replaces:134456602)
15	134550800		Hinge,door ,with Bushings
16	131205300		Screw,10-16 X 0.750
17	134638700		Clip,assembly
20	134434901		Bracket,ls Panel ,reinforcement
22	134648500		Bracket-spring,retainer
24	137371760		Panel,work Top ,black   (Replaces:134365060)
25	134775500		Base,washer
26	134521600		Screw,hex Washer Head ,m5 0.8 X 15
27	134550900		Bracket,hinge ,reinforcement
28	134364300		Panel,service Access ,rear
29	137021861		Panel,front ,black
F31	5304505407		Power Cord,electric Svce   (Replaces:134501000)
32	5303209428		Bushing,power Cord
35	134365101		Bracket,top Support ,rear   (Replaces:134365100)
36	134548800		Leveling Leg,screw ,plastic
42	137380600		Screw,flat Head ,m5 X .8 X 17.5   (Replaces:134601900)
48	134550565		Panel,outer Door ,black
50	134645600		Bracket,tub Suspension
51	134655800		Protector,tub Suspension ,spring Hook ,(2)
52	131931202		Dampener,vibration ,foam
53	134551300		Ring,door Transition
54	134364900		Fastener,wire Harn Clip
56	137577700		Glass,outer Door Lens   (Replaces:134550600)
60	134372000		Grommet,dispenser ,back Panel
64	137166825		Nameplate,affinity
23L	134775360		Panel,left Side ,black
23R	134775260		Panel,right Side ,black
FNI	134547600		Wiring Harness,motor Control
	134606800		Wiring Harness,door Switch
NI	134889700		Clip, Hose,drain ,rear-panel
	134178901		Screw,8-18ab X 0.455
	137021600		Bracket,mounting ,left ,front Panel
	137021610		Bracket,mounting ,right ,front Panel
	134554500		Pad,outer Door
	134591500		Plug Assy,shipping Holes ,back
	134629400		Screw,mc5x8.5 Torx ,cabinet Mtg
	134876501		Clip,hose,drain ,rear-panel   (Replaces:134876500)
	134434900		Bracket,rs Panel ,reinforcement
