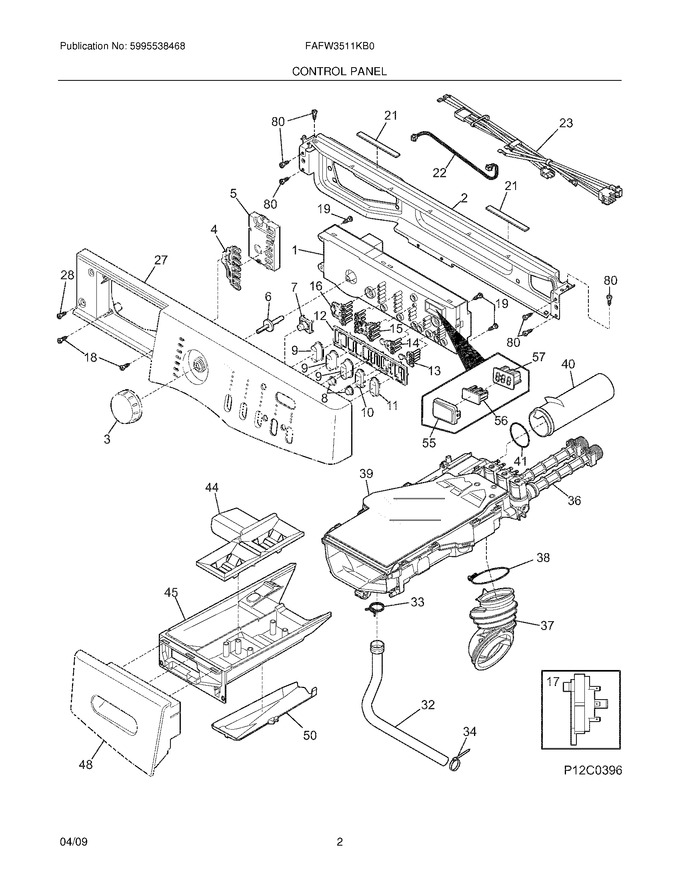

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
F1 | 137006060 | Control Board,pc ,with Housing | ||||
2 | 134364801 | Bracket,top Front (Replaces:134364800) | ||||
3 | 134551210 | Knob,program ,chrome (Replaces:134551225) | ||||
4 | 134553100 | Light Pipe,program | ||||
F5 | 134556500NH | Interface Board,pc ,auxiliary (Replaces:134556500) | ||||
6 | 134347700 | Pin,program Knob | ||||
7 | 134891500 | Push Button,round ,no.2 | ||||
8 | 134555525 | Push Button,round ,no.1 | ||||
9 | 134553425 | Push Button,oval ,no.1 | ||||
10 | 134555440 | Push Button,oval ,no.2 (soil) | ||||
11 | 134864400 | Push Button,oval ,start | ||||
12 | 134884900 | Spring,push Button | ||||
13 | 134557500 | Light Pipe,start Group | ||||
14 | 134557400 | Light Pipe,row Of 3 | ||||
15 | 134552800 | Light Pipe,5 X 4 | ||||
16 | 134600000 | Light Pipe,row Of 5 | ||||
F17 | 134762000 | Switch,pressure | ||||
18 | 131302800 | Screw,10-16ab X 0.375 | ||||
19 | 134402900 | Screw,phillips ,6-19 X 0.650 | ||||
21 | 134407900 | Dampener,vibration | ||||
F22 | 134602100 | Wiring Harness,interface Board | ||||
F23 | 134436600 | Wiring Harness,controls | ||||
27 | 137166760 | Panel,control Console | ||||
28 | 131205300 | Screw,10-16 X 0.750 | ||||
32 | 134586500 | Hose,disp-to-bellows | ||||
33 | 134737300 | Clamp (Replaces:131306216) | ||||
34 | 5304464772 | Cable Tie,5.60 Inch (Replaces:5303321209) | ||||
F36 | 134371220 | Valve,dispenser ,ntc/short Tube | ||||
37 | 134372300 | Hose,disp-to-tub | ||||
38 | 134372400 | Clamp,tub Hose | ||||
39 | 134409320 | Housing,dispenser ,w/valve,cover (Replaces:134446120) | ||||
40 | 134372100 | Tube,disp-to-overflo | ||||
41 | 134372200 | O-ring,overflow Tube | ||||
44 | 134370200 | Cover,dispenser | ||||
45 | 134370000 | Drawer,dispenser | ||||
48 | 137168060 | Handle/drawer Assy | ||||
50 | 134409320 | Conveyor,dispenser ,lower (Replaces:134370100) | ||||
55 | 134553200 | Lens,digital Display | ||||
56 | 134557300 | Light Pipe,digital Display | ||||
F57 | 134503300 | Display,digital | ||||
80 | 131168200 | Screw,10-16ab X 0.375 (Replaces:134547800) | ||||
FNI | 137104600 | Wiring Harness,main (Replaces:134743400) | ||||
NI | 134178901 | Screw,8-18ab X 0.455 | ||||
134555800 | Pad,drawer Handle ,soft Touch | |||||
131311900 | Screw,quadrex Ph ,8-18ab X 0.500 | |||||
134371300 | Gasket,disp-to-valve |
