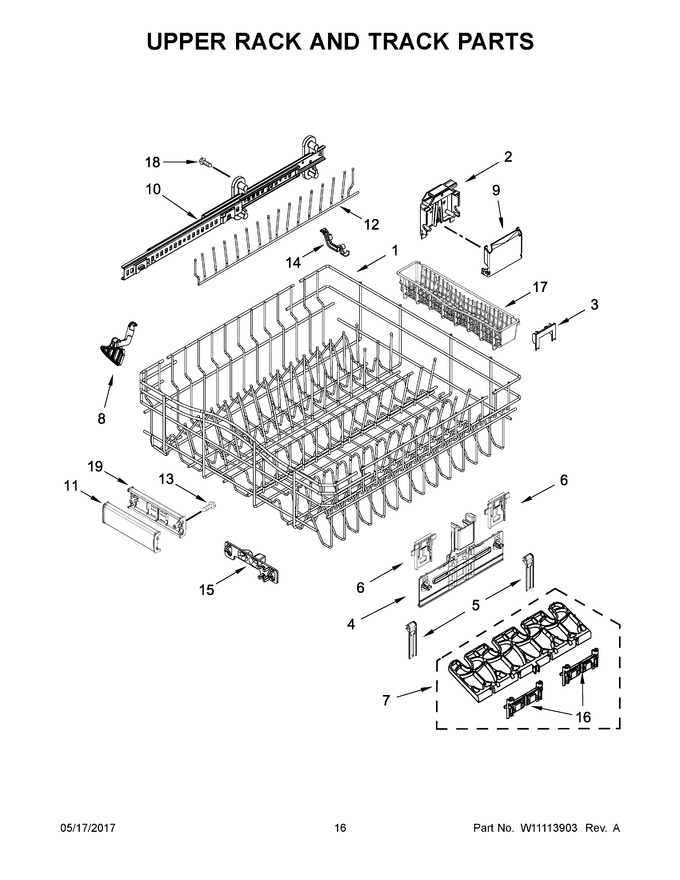

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10728863 | Dishrack, Upper (Replaces:W10312791) |  |
|||
| 2 | WPW10588164 | Housing, Adjuster (includes Spring And Lever) (left Hand) | |
|||
| 3 | WPW10250160 | Clip, Adjuster | |
|||
| 4 | WPW10546503 | Adjuster Assembly | |
|||
| 5 | WPW10195839 | Strap, Tether Adjuster | |
|||
| 6 | WPW10195840 | Positioner, Adjuster | |
|||
| 7 | WPW10082649 | Cupshelf Assembly | |
|||
| 8 | W10919676 | Clip, Dispenser Guard (Replaces:W10752617) | |
|||
| 9 | WPW10250162 | Cover, Adjuster | |
|||
| 10 | W11259785 | Track, Assembly (left Hand) (Replaces:W10914015) | |
|||
| 11 | W11110542 | Handle, Dishrack Front (Replaces:W10778309) | |
|||
| 12 | W10727426 | Tine Row, Fold Down (Replaces:8562030) | |
|||
| 13 | WP9741232 | Screw | |
|||
| 14 | WPW10082853 | Clip, Pivot | |
|||
| 15 | WP8539102 | Positioner, Dual Dishrack | |
|||
| 16 | WPW10082848 | Clip, Cupshelf | |
|||
| 17 | W11240750 | Basket, Utensil Row (Replaces:W10702379) | |
|||
| 18 | WPW10309090 | Screw | |
|||
| 19 | W11110542 | Handle, Dishrack Rear (Replaces:W10473792) | |
|||
| 10A | W11259786 | Track, Assembly (right Hand) (Replaces:W10914016) | |
|||
| 2A | WPW10588165 | Housing, Adjuster (includes Spring And Lever) (right Hand) | |
