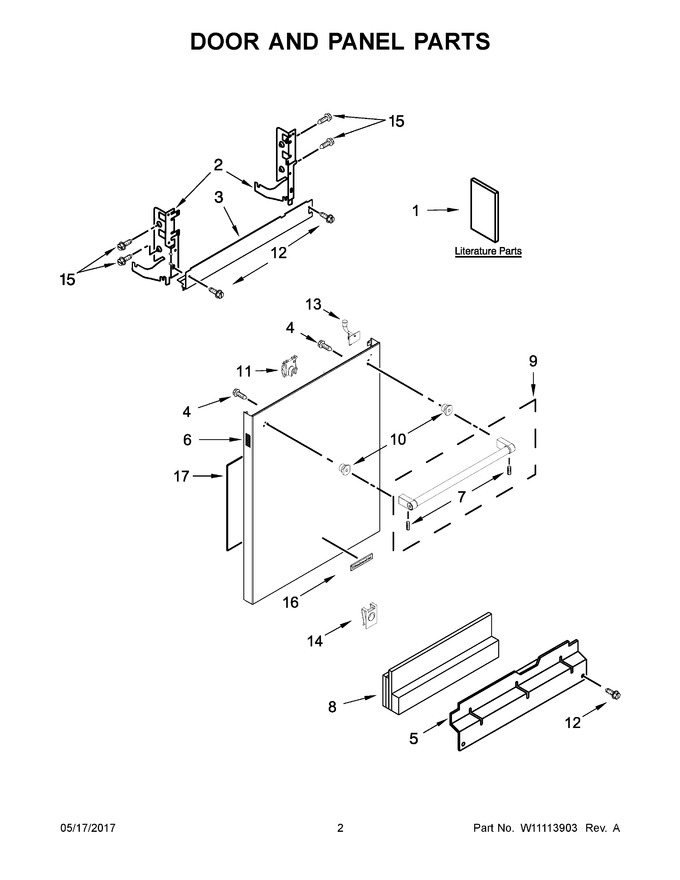

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10806906 | Installation Instructions |  |
|||
| 2 | W11612302 | Arm, Hinge (left Hand) (Replaces:8534854) | |
|||
| 3 | W10850371 | Barrier, Vapor (Replaces:W10844384) | |
|||
| 4 | W10826179 | Screw (Replaces:W10316572) | |
|||
| 5 | W10909064 | Access Panel (black) (Replaces:W10852733) | |
|||
| 6 | W10900373 | Front Panel (includes 11, 13 & 16) (black Stainless) (Replaces:W10872623) | |
|||
| 7 | W10917698 | Set Screw (Replaces:W10687133) | |
|||
| 8 | W11223838 | Insulation, Four Layer (Replaces:W10735304) | |
|||
| 9 | W10708004 | Handle Assembly (stainless) (Replaces:W10786161) | |
|||
| 10 | W11157086 | Stud, Mounting (Replaces:W10195726) | |
|||
| 11 | W10692757 | Barrel Nut, Front Panel | |
|||
| 12 | WP302868 | Screw (black) | |
|||
| 13 | W10901145 | Light Pipe (Replaces:W10854504) | |
|||
| 14 | W10910629 | U-nut (Replaces:W10853886) | |
|||
| 15 | WP3400071 | Screw | |
|||
| 16 | W10909682 | Nameplate (stainless) (Replaces:W10518673) | |
|||
| 17 | W11126003 | Insulation, Front Panel (Replaces:W10315897) | |
|||
| 1A | W10921038 | Energy Guide | |
|||
| 1B | W10762967 | Use & Care Guide | |
|||
| 1C | W10920270 | Tech Sheet | |
|||
| 2A | WP8534853 | Arm, Hinge (right Hand) | |
|||
| 6A | W10900374 | Front Panel (includes 11, 13 & 16) (stainless) (Replaces:W10872619) | |
