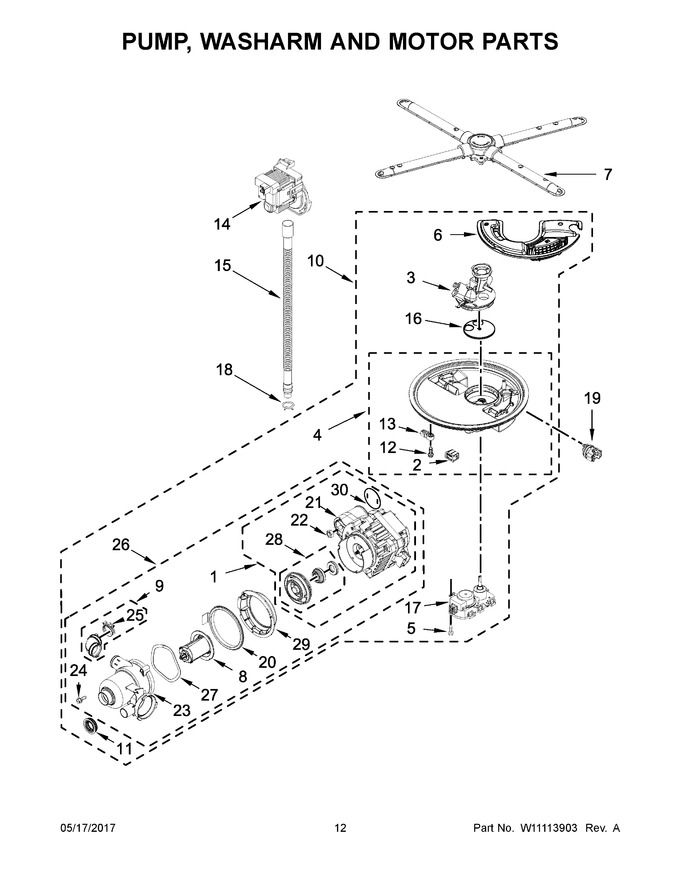

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10907617 | Motor (also Order Items 9 & 11) (Replaces:W10713293) |  |
|||
| 2 | W10647236 | Motor, Isolator | |
|||
| 3 | WPW10455272 | Cover, Outlet | |
|||
| 4 | W10832796 | Sump With Seal (also Order Items 9 & 11) (Replaces:W10647213) | |
|||
| 5 | WP9741232 | Screw | |
|||
| 6 | W10832799 | Grate Assembly, Course (Replaces:W10647226) | |
|||
| 7 | W11553338 | Sprayarm Assembly, Lower (Replaces:W10884490) | |
|||
| 8 | W11084156 | Filter Assembly, Pump (Replaces:W10713298) | |
|||
| 9 | W10730897 | Hose Assembly (includes 2 Clamps) (Replaces:W10647237) | |
|||
| 10 | W10805015 | Motor & Sump Assembly (Replaces:W10673255) | |
|||
| 11 | WPW10538166 | Grommet | |
|||
| 12 | WPW10348407 | Screw | |
|||
| 13 | WPW10372113 | Tab, Sump | |
|||
| 14 | W10914557 | Pump, Drain (Replaces:W10758882) | |
|||
| 15 | W11732282 | Hose, Drain (Replaces:8269144) | |
|||
| 16 | 8269144A | Disc, Diverter (Replaces:W10476221) | |
|||
| 17 | WPW10476221 | Motor, Diverter | |
|||
| 18 | W10537869 | Clamp, Hose (Replaces:8269146) | |
|||
| 19 | WP8269146 | Indicator, Optical Wash | |
|||
| 20 | W11084121 | Ring, Volute (Replaces:W10380239) | |
|||
| 21 | W10380239 | Capacitor | |
|||
| 22 | W11662065 | Nut (Replaces:8533949) | |
|||
| 23 | 8533949 | Housing, Pump | |
|||
| 24 | W10708008 | Screw | |
|||
| 25 | W10467002 | Clamp, Hose | |
|||
| 26 | W10789434 | Pump Assembly (Replaces:W10713292) | |
|||
| 27 | W10902589 | Spring, Compression (Replaces:W10772270) | |
|||
| 28 | W10772270 | Impeller Assembly | |
|||
| 29 | W10783130 | Volute (Replaces:W10723279) | |
|||
| 30 | W10723279 | Shield, Capacitor | |
|||
| W10710432 | |
