1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Water System
4 - Cabinet & Top Panel

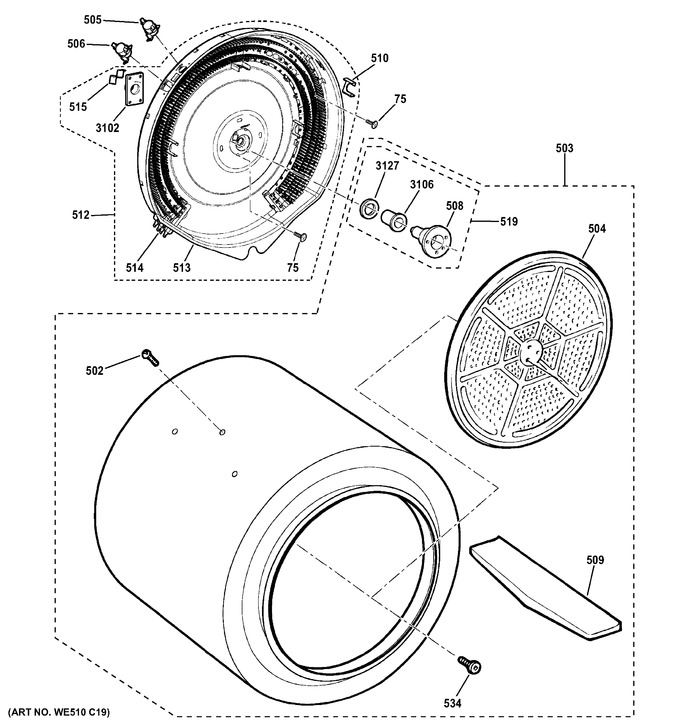

5 - Drum
| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 75 | WE01X21155 | Screw |  |
|||
| 502 | WE2M174 | Screw # 10 | |
|||
| 503 | WE21X24544 | Drum Asm | |
|||
| 504 | WE14X20408 | Diffuser | |
|||
| 505 | WE04X25194 | Thermostat | |
|||
| 506 | WE04X25196 | Thermostat | |
|||
| 508 | WE0X181L | Shaft | |
|||
| 509 | WE14X20683 | Baffle | |
|||
| 510 | WE1M780 | Protection Bracket | |
|||
| 512 | WE11X21156 | Heater And Housing Asm | |
|||
| 513 | WE11M43 | Heater Housing | |
|||
| 514 | WE11M10001 | Mica Heater | |
|||
| 515 | WE1M1015 | Ground Strap Asm | |
|||
| 519 | WE3M33 | Shaft & Bracket Ass'y | |
|||
| 534 | WE2M163 | Screw #10 | |
|||
| 3102 | WE1M300 | Bearing Retainer | |
|||
| 3106 | WE1M462 | Sleeve Drum | |
|||
| 3127 | WE1M461 | O Ring | |
