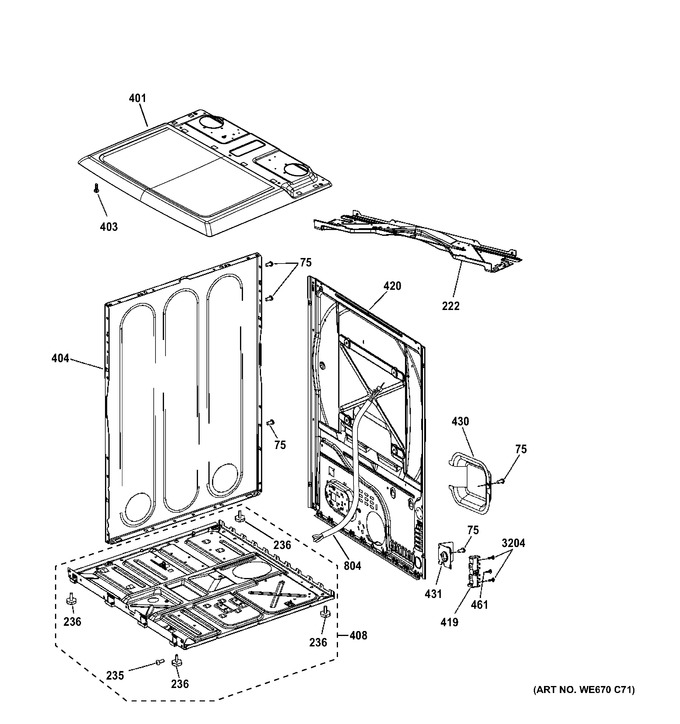

4 - Cabinet & Top Panel


5 - Drum


Diagram #	Part Number		Description	Series	Find a Video
75	WE01X21155		Screw
222	WE03X23883		Cover Bottom
236	WE1M1101		Levelling Foot
401	WE03X24721		Cover Top Low Depth
403	WE01X25318		Screw
404	WE20X25259		Panel Side
408	WE04X25159		Chassis And Leg Asm
419	WE4M325		Term Blk & Grnd Strap
420	WE02X23955		Panel Rear
430	WE1M1007		Cover Fuse Terminal
431	WE01X20423		Strain Relief Bracket El
461	WZ05X0158		Screw 8-32x3/8 Grd Scr
804	WE15X25312		Harness Asm Elec
3204	WH2M270		Scr
