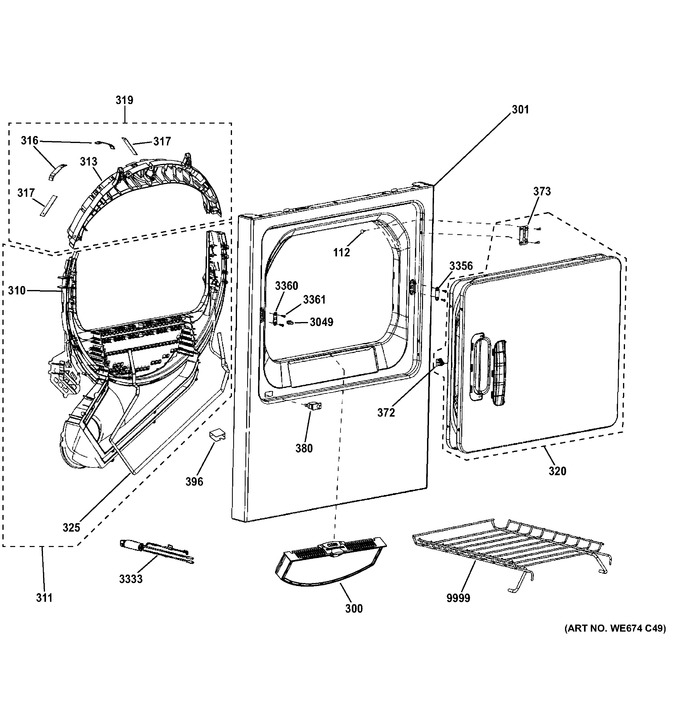

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
112 | WE1M934 | Plug Button White | ||||
300 | WE03X23881 | Filter Lint Asm | ||||
301 | WE20X25260 | Panel Front | ||||
310 | WE01X24546 | Trap Duct Slides | ||||
311 | WE03X25275 | Trap Duct Asm | ||||
313 | WE03X23956 | Bearing Top Slides | ||||
316 | WE3M52 | Bearing Slide | ||||
317 | WE3M51 | Bearing Slide | ||||
319 | WE03X25314 | Bearing Top Asm | ||||
320 | WE10X24557 | Door Asm | ||||
325 | WE1M825 | Gasket (seal) 39 Inch | ||||
372 | WE01X25316 | Latch | ||||
373 | WE01X25317 | Hinge Asm | ||||
380 | WE10X23879 | Door Switch | ||||
396 | WE01X23880 | Shield Switch | ||||
3049 | WE1X1192 | Strike Door | ||||
3333 | WE15X25311 | Harness Thermo Asm | ||||
3356 | WE1M569 | Strike Plate | ||||
3360 | WE1M570 | Strike Plate W/strk Hole | ||||
3361 | WE2M302 | Screw | ||||
9999 | WE01X25160 | Kit Drying Rack |
