01 - Cover Sheet


02 - Control Panel

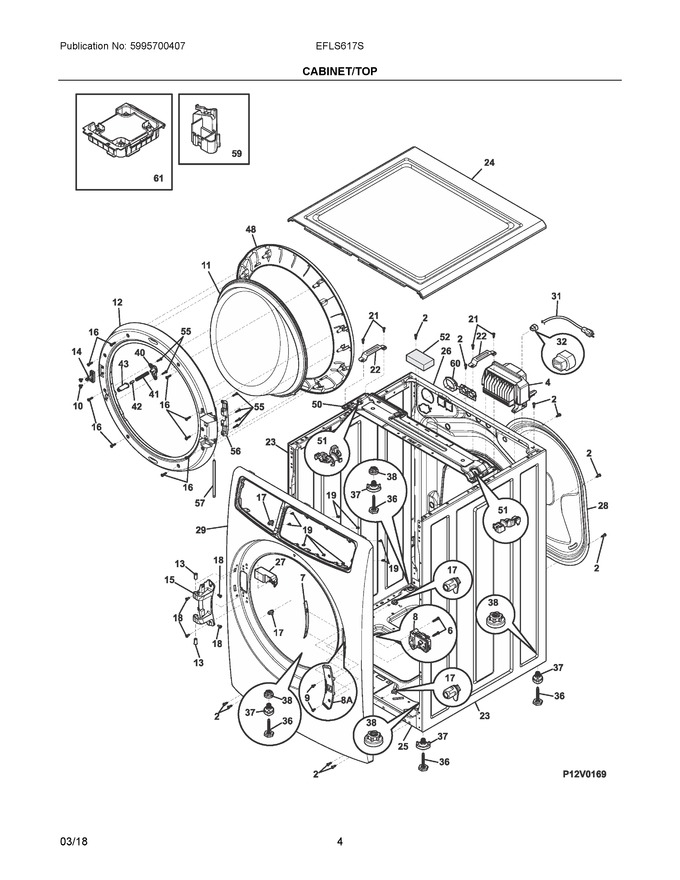

03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Find a Video
2	131168200		Screw, Pan Head, 8-18b X 0.31
4	5304505521		Motor Control, Assembly, W/cover
6	134477400		Screw, Sheet Metal, 6-20 X 0.375, (2)
7	5304505144		Cover, Hinge Holes
8	5304514774		Door Lock, Assembly, W/switch   (Replaces:5304505231)
9	131302800		Screw, Pan Head, 10-16ab X 0.500, Locking   (Replaces:131303300)
10	137241000		Screw, Quad Ph, 10-16 X 0.375
11	5304505107		Glass, Door Window
12	5304505234		Frame, Door, Inner
13	5304508699		Bushing, Hinge, (2)   (Replaces:5304505347)
14	5304505088		Latch, Door
15	5304508699		Hinge, Door   (Replaces:5304505108)
16	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)
17	5304505102		Clip, Front Panel, (4)
18	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)
19	5304505441		Screw, Pph B, 6-20x.375
21	137087400		Screw, #10-16 X .625
22	5304505101		Bracket, Spring, (2)
23	5304505140		Panel, Side, Titanium, (2)
24	5304505082		Top Panel, Titanium
25	134646003		Base
26	134646113		Panel, Back   (Replaces:134646111)
27	5304505104		Protection, Door Lock
28	134646200		Panel, Service, Back
29	5304505059		Panel, Washer Front, Titanium
31	5304522525		Power Cord, Electric Svce   (Replaces:5304505202)
32	5303209428		Bushing, Strain Relief
36	134639100		Leveling Leg, Screw
37	134617600		Bushing, Leveling Leg
38	134639200		Nut, Leveling Leg, Bushing
40	5304505328		Cap, Door Vent
41	5304505329		Spring, Door Vent
42	5304505381		Magnet, Door Vent
43	5304535443		Button, Door Vent   (Replaces:5304505331)
48	5304505389		Frame, Door, External
50	5304505087		Bracket, Tub Suspension
51	5304505221		Protector, Tub Bracket, Spring Hook, (2)
52	131931202		Dampener, Vibration, Foam
55	3205150		Screw, 8-12b X 0.750
56	5304505001		Bracket, Hinge
57	5304505269		Pin, Hinge
59	5304505311		Support, Connector
60	134372000		Grommet, Dispenser, Back Panel
61	134652000		Damper, Mass Vibration
8A	5304505103		Cover, Door Lock, Front Flange
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg
	137146700		Shipping Support, Kit, W/instructions, Bolts & Washers
	134876501		Clip, Shipping Clamp, Rear-panel   (Replaces:134876500)
	134591400		Plug, Hole, (7), Rear Cabinet
	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces:5303321209)
	137262100		Screw, Pan Head Quad, 10-14 X 1.00
NIA	5304522524		Harness, Wiring, Door Lock Dbl   (Replaces:5304505176)
	137110800		Cushion, Shock Bracket, Left Rear
	5304505127		Harness, Wiring, Main, W/drum Light
NIB	134178901		Screw, 8-18ab X 0.455
	131202300		Screw, 10-16ab X 0.625
