01 - Cover Sheet

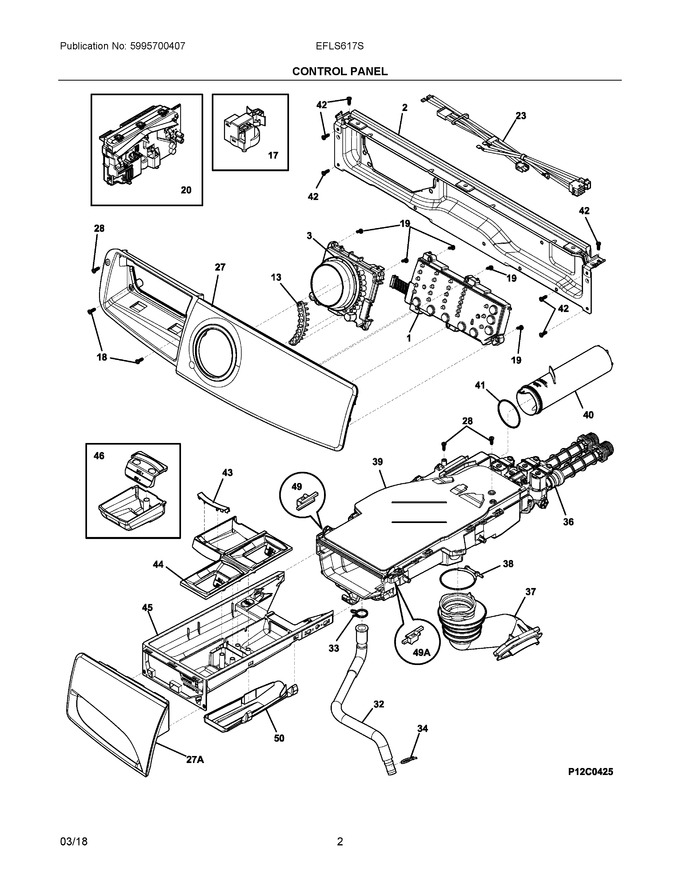

02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Find a Video
1	5304505611		Board Assembly, Ui Programmed, Satellite, W/housing-screws
2	5304505086		Bracket, Control Panel
3	5304505019		Knob Assembly, Complete, W/boards
13	5304505064		Diffuser, Light
17	5304505436		Sensor Switch, Pressure
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5
19	5304505441		Screw, Pph B, 6-20x.375
20	5304505520		Main Board, Assembly (high), Washer, W/housing
23	5304505127		Harness, Wiring, Main, W/drum Light
27	5304505462		Console Assembly, W/overlay
28	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive
32	134625500		Hose, Disp-to-bellows
33	134737300		Clamp   (Replaces:131306216)
34	131964400		Cable Tie, Push Mount, 5.20 Inch
36	5304505192		Valve Assembly, Dispenser
37	134625700		Hose, Disp-to-tub
38	134372400		Clamp, Tub Hose
39	5304506505		Housing Assembly, Dispenser, W/valve   (Replaces:5304505266)
40	134372103		Tube, Disp-to-overflo
41	134372200		O-ring, Overflow Tube
42	131168200		Screw, Pan Head, 8-18b X 0.31
43	5304505207		Indicator, Stain Treatment
44	5304505336		Cover, Drawer, W/graphics   (Replaces:134638321)
45	5304505336		Drawer, Dispenser
46	137143800		Cup, Dispenser, Liquid
49	137286700		Guide, Dispenser Dwr, Lh
50	134638400		Conveyor, Dispenser, Lower
27A	5304505463		Handle Assembly, Drawer, W/overlay
49A	137286710		Guide, Dispenser Dwr, Rh
NI	5304505217		Energy Guide
NIA	134371300		Gasket, Disp-to-valve
	134178901		Screw, 8-18ab X 0.455
	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg
	134407900		Dampener, Vibration
