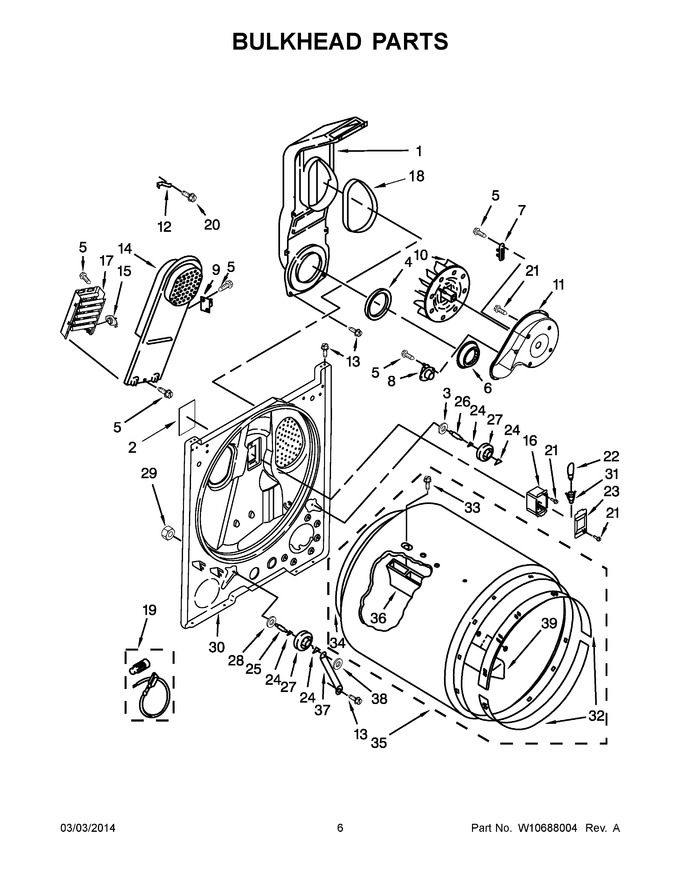

Diagram # Part Number Description Series Find a Video
1 W11117429 Assembly, Lint Chute   (Replaces:348368) Find a Video
2 W11409002 Pad, Foam   (Replaces:W10504381) Find a Video
3 WP3388703 Washer Find a Video
4 W11415783 Seal, Lint Chute   (Replaces:347139) Find a Video
5 WP90767 Screw Find a Video
6 W11233063 Shield, Exhaust   (Replaces:W10389567) Find a Video
7 WP3392519 Fuse, Thermal (91° C) Find a Video
8 WP3387134 Thermostat Find a Video
9 279816 Thermal Cut-off   (Replaces:3977393) Find a Video
10 WP694089 Wheel, Blower Find a Video
11 WP8577230 Housing, Blower Find a Video
12 279771 Clip, Heater Box   (Replaces:3398161) Find a Video
13 WP681414 Screw   (Replaces:343641) Find a Video
14 WP8541818 Box, Heater Find a Video
15 WP3977767 Thermostat, 221 F (105 C) Find a Video
16 3977373 Bracket, Drum Light Find a Video
17 279838 Element, Heater   (Replaces:3403585) Find a Video
18 WP339956 Seal Find a Video
19 279457 Terminal Wire Kit (for Heater Element Wiring Harness Repair) Find a Video
20 WP489463 Screw Find a Video
21 3390647 Screw Find a Video
22 WP22002263 Bulb, Light   (Replaces:3406124) Find a Video
23 W11226088 Lens, Drum Light   (Replaces:3402841) Find a Video
24 WPW10512946 Washer, Tri Ring Find a Video
25 WPW10359270 Shaft, Drum Roller - Left Hand Thread Find a Video
26 WPW10359269 Shaft, Drum Roller - Right Hand Thread Find a Video
27 349241T Roller, Support   (Replaces:3397590) Find a Video
28 WP348197 Washer Find a Video
29 W11229607 Nut, Hex   (Replaces:W10298789) Find a Video
30 W10828431 Bulkhead   (Replaces:3403413) Find a Video
31 W11222979 Socket, Light   (Replaces:W10214261) Find a Video
32 279441 Bearing, Ring   (Replaces:692526) Find a Video
33 W10853898 Screw   (Replaces:W10219342) Find a Video
34 W10612022 Seal, Rear Drum   (Replaces:W10663495) Find a Video
35 W10899578 Assembly, Drum (complete)   (Replaces:W10389436) Find a Video
36 WP692490 Baffle, Drum (long) Find a Video
37 W11032820 Bracket, Support   (Replaces:3976434) Find a Video
38 WP90296 Nut, Push On Find a Video
39 WP3403636 Baffle, Drum (short) Find a Video
