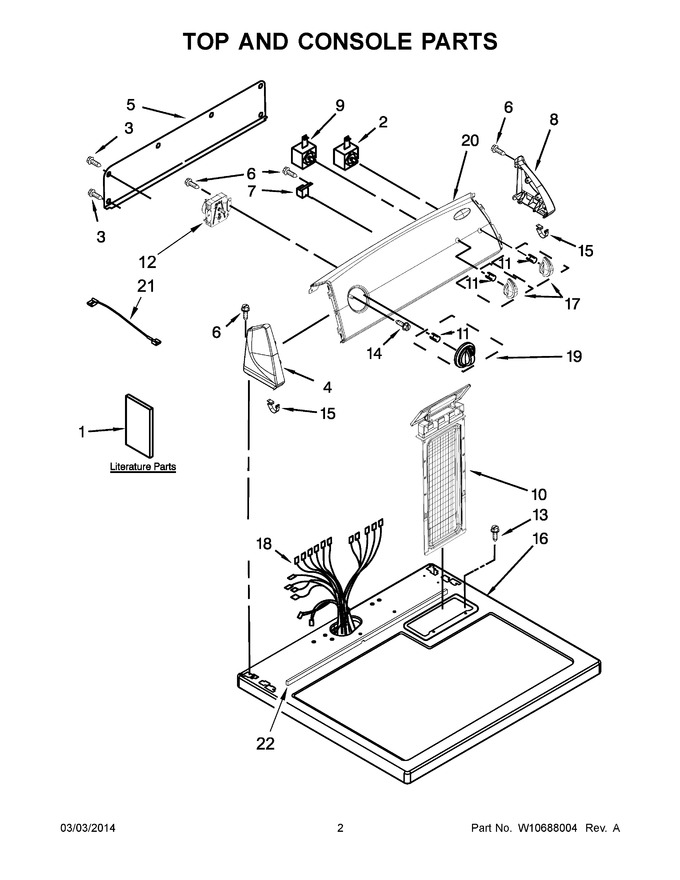

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10514172 | Installation Instructions |  |
|||
| W10185985 | Wiring Diagram | |
||||
| W10096986 | Guide, Use And Care | |
||||
| 2 | WPW10117655 | Switch, Push To Start | |
|||
| 3 | WP693995 | Screw | |
|||
| 4 | WP8565957 | End Cap (left) (white) (Replaces:8566035) | |
|||
| 5 | W10103406 | Panel, Rear (console) | |
|||
| 6 | WP90767 | Screw (Replaces:3348629) | |
|||
| 7 | WP694419 | Buzzer, Mini | |
|||
| 8 | WP8565954 | End Cap (right) (white) (Replaces:8566032) | |
|||
| 9 | WP3399639 | Switch, Temperature | |
|||
| 10 | W11607443 | Screen, Lint (white) (Replaces:W10641634) | |
|||
| 11 | WP8536939 | Clip, Spring | |
|||
| 12 | WPW10185982 | Assembly, Timer (60 Hz.) | |
|||
| 13 | W11693756 | Screw (Replaces:688983) | |
|||
| 14 | W10850756 | Screw (Replaces:8533974) | |
|||
| 15 | WP8312709 | Clip, Console | |
|||
| 16 | WP8563663 | Top (white) (Replaces:8559800) | |
|||
| 17 | WPW10034380 | Assembly, Control Knob (white/metallic) | |
|||
| 18 | W10740200 | Harness, Wiring (Replaces:W10186095) | |
|||
| 19 | WPW10034750 | Assembly, Timer Knob (white/metallic) | |
|||
| 20 | WPW10295262 | Assembly, Control Panel & Bracket | |
|||
| 21 | 3401671 | Wire, Jumper | |
|||
| 22 | W10316616 | Seal, Foam | |
