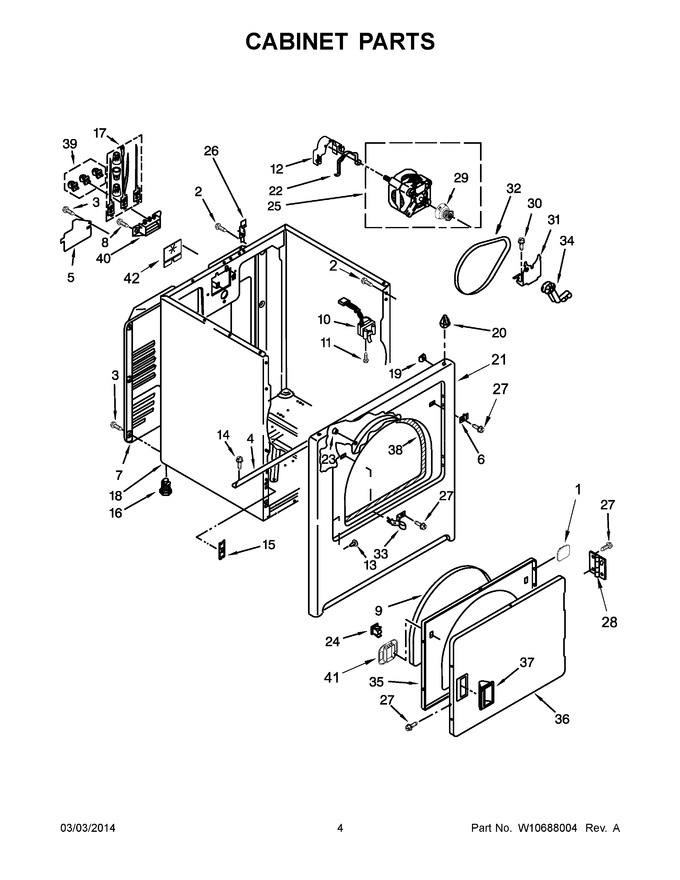

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11173656 | Cover, Door Catch (Replaces:W10529198) |  |
|||
| 2 | WP681414 | Screw (Replaces:343641) | |
|||
| 3 | WP693995 | Screw | |
|||
| 4 | W10236073 | Bracket, Cabinet | |
|||
| 5 | W11298298 | Cover, Terminal Block (Replaces:W10571619) | |
|||
| 6 | W11684591 | Plug, Strike (Replaces:W10567345) | |
|||
| 7 | 280043 | Panel, Rear (Replaces:W10571724) | |
|||
| 8 | WP308685 | Screw (Replaces:3393008) | |
|||
| 9 | W10861521 | Seal, Door (Replaces:W10389572) | |
|||
| 10 | WP3406107 | Switch, Door (Replaces:W10569603) | |
|||
| 11 | WP3395530 | Screw (Replaces:697773) | |
|||
| 12 | WP3404162 | Clamp, Motor (with Shield) | |
|||
| 13 | WP3404413 | Plug, Hole | |
|||
| 14 | WP3390631 | Screw | |
|||
| 15 | W10854425 | Clip, Front Panel (Replaces:3394083) | |
|||
| 16 | 49621 | Foot, Dryer (Replaces:3392100) | |
|||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) | |
|||
| 18 | 8533643 | Cabinet (white) (Replaces:8530603) | |
|||
| 19 | WP98234 | Clip, Ground | |
|||
| 20 | WP8066092 | Lock, Front Top | |
|||
| 21 | W10806345 | Panel, Front (white) (Replaces:W10664697) | |
|||
| 22 | WPW10121316 | Clamp, Motor Mount | |
|||
| 23 | 279220 | Clip, Felt Pad (Replaces:685203) | |
|||
| 24 | W11429587 | Assembly, Door Catch (Replaces:W10610880) | |
|||
| 25 | 279827 | Assembly, Motor (Replaces:W10396029) | |
|||
| 26 | WP8066217 | Hinge, Top | |
|||
| 27 | WP488627 | Screw (Replaces:342055) | |
|||
| 28 | WPW10362431 | Assembly, Hinge And Pin | |
|||
| 29 | WP8066184 | Pulley, Motor | |
|||
| 30 | 3400500 | Bolt | |
|||
| 31 | WP348780 | Base, Motor | |
|||
| 32 | 341241 | Belt, Drive (Replaces:W10131364) | |
|||
| 33 | W11429589 | Strike, Door (Replaces:3403431) | |
|||
| 34 | WP691366 | Idler Assembly | |
|||
| 35 | WPW10463967 | Door, Inner | |
|||
| 36 | W10861227 | Door, Outer (white) (Replaces:3402335) | |
|||
| 37 | WPW10549553 | Handle, Door (white) | |
|||
| 38 | W11035878 | Assembly, Seal And Bearing (Replaces:W10663510) | |
|||
| 39 | 279393 | Screw Kit, Terminal Block | |
|||
| 40 | WP3397659 | Block, Terminal | |
|||
| 41 | WPW10529197 | Bezel, Door Catch | |
|||
| 42 | W11230156 | Pad, Power Cord (Replaces:W10574733) | |
|||
| NI | 49621 | Foot, Optional Extended Length Package Of 2) (not Included) (Replaces:279810) | |
