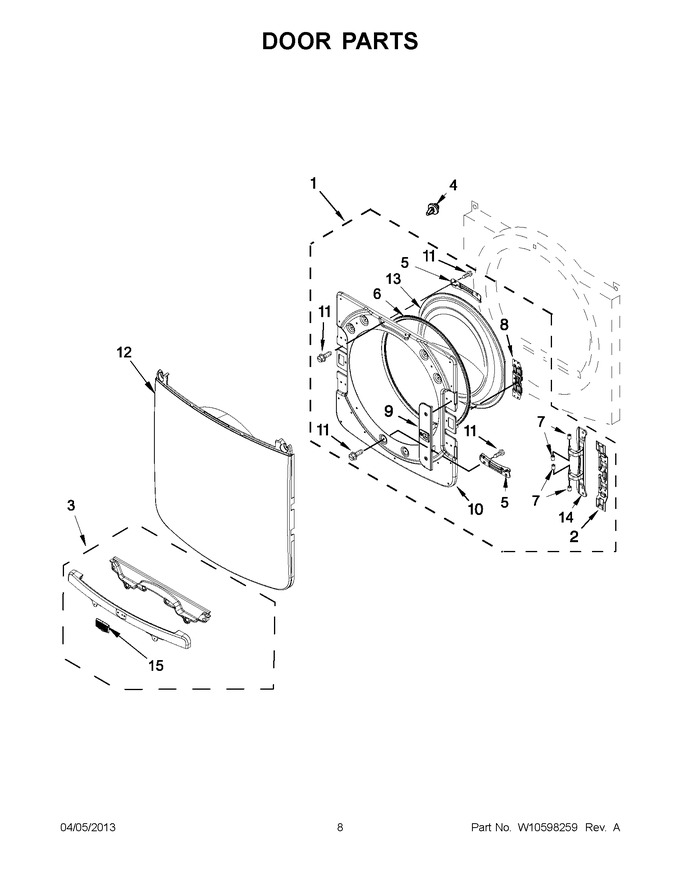

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W11465962 | Inner Door Assembly (Replaces:W10272387) |  |
|||
| 2 | WPW10208419 | Plate, Hinge Retainer | |
|||
| 3 | WPW10466619 | Handle, Door | |
|||
| 4 | 8572266 | Bumper, Door | |
|||
| 5 | W10208252 | Bracket, Glass | |
|||
| 6 | W11126230 | Seal, Glass (Replaces:W10329710) | |
|||
| 7 | WPW10208398 | Cap, Hinge | |
|||
| 8 | WPW10208254 | Door Catch Assembly | |
|||
| 9 | W10272404 | Cover, Door Catch | |
|||
| 10 | W10285652 | Inner Door | |
|||
| 11 | WPW10288126 | Screw | |
|||
| 12 | WPW10424248 | Outer Door Assembly | |
|||
| 13 | W10208417 | Glass, Door | |
|||
| 14 | WPW10208415 | Hinge Base | |
|||
| 15 | W10466582 | Badge, Maytag | |
