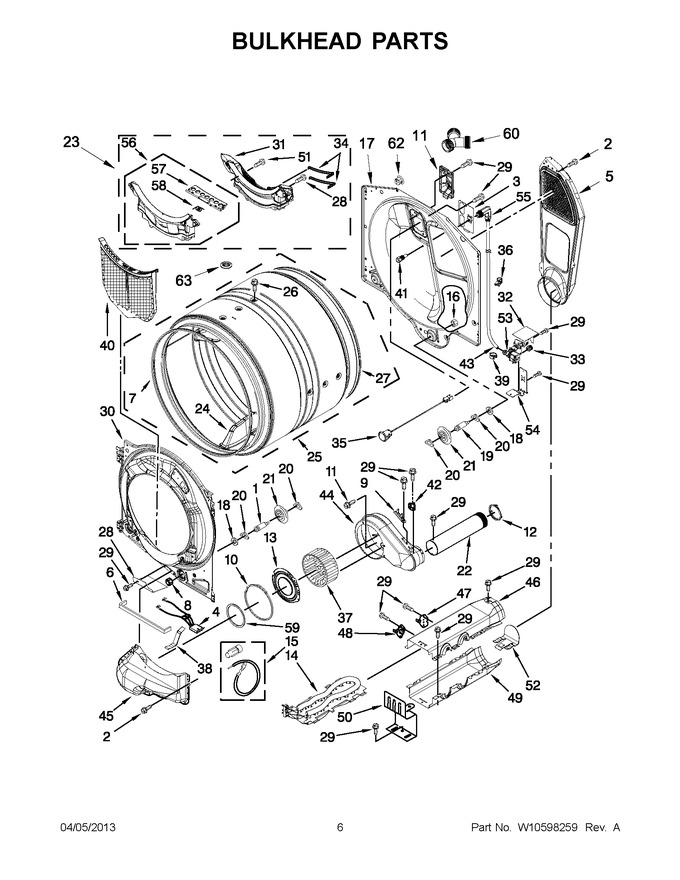

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread |  |
|||
| 2 | 3390647 | Screw | |
|||
| 3 | WPW10656504 | Nozzle, Bracket Rear (Replaces:W10249422) | |
|||
| 4 | WPW10298258 | Harness, Sensor | |
|||
| 5 | WP3387911 | Assembly, Air Duct (Replaces:697354) | |
|||
| 6 | W11676493 | Seal, Housing Outlet (Replaces:W10211950) | |
|||
| 7 | W11193479 | Seal, Drum Front (Replaces:W10521122) | |
|||
| 8 | WPW10080210 | Nut, Hex (Replaces:3934666) | |
|||
| 9 | WP3392519 | Fuse, Thermal (91 C) | |
|||
| 10 | WP697770 | Seal, Plate Cover | |
|||
| 11 | WPW10208422 | Rear Deflector | |
|||
| 12 | WPW10344699 | Collar-duct | |
|||
| 13 | W10211901 | Collar Assembly | |
|||
| 14 | WP8544771 | Heater Element | |
|||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) | |
|||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces:W10001120) | |
|||
| 17 | W11299301 | Bulkhead, Rear (Replaces:8520836) | |
|||
| 18 | W11236646 | Washer (Replaces:3387459) | |
|||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread | |
|||
| 20 | WPW10512946 | Washer, Tri Ring | |
|||
| 21 | WPW10314173 | Roller, Support (Replaces:W10314171) | |
|||
| 22 | WPW10342188 | Exhaust Pipe | |
|||
| 23 | W10906551 | Outlet Grill & Housing Assembly (Replaces:W10219012) | |
|||
| 24 | W10416098 | Bafffle, Drum | |
|||
| 25 | W10381481 | Drum Assembly Complete | |
|||
| 26 | W10853898 | Screw (Replaces:W10219342) | |
|||
| 27 | 280114 | Seal, Drum (Replaces:W10521118) | |
|||
| 28 | W11257251 | Shield, Blower (Replaces:W10128629) | |
|||
| 29 | WP693995 | Screw | |
|||
| 30 | W10673491 | Bulkhead, Front Door Screen (Replaces:W10211930) | |
|||
| 31 | W11125442 | Grille, Outlet (Replaces:W10211903) | |
|||
| 32 | W10184825 | Cover, Inlet Valve | |
|||
| 33 | W10859554 | Coupling, Hose (Replaces:W10044605) | |
|||
| 34 | WP3387223 | Sensor, Electrode | |
|||
| 35 | W10460935 | Drum Light Assembly-led | |
|||
| 36 | WP3391018 | Tie Cable | |
|||
| 37 | WP697772 | Wheel, Blower (Replaces:W10211915) | |
|||
| 38 | W10414388 | Clip, Lint Duct | |
|||
| 39 | W10044599 | Clip, Push-to-connect | |
|||
| 40 | WPW10516085 | Lint Screen (Replaces:W10370972) | |
|||
| 41 | WPW10277503 | Assembly, Nozzle & Screen | |
|||
| 42 | WP8577274 | Thermistor | |
|||
| 43 | WPW10347739 | Hose, Rear Nylon (Replaces:W10348621) | |
|||
| 44 | WPW10211911 | Housing, Blower | |
|||
| 45 | WPW10211896 | Lint Duct Assembly | |
|||
| 46 | WP8544769 | Housing Slot Heater Box | |
|||
| 47 | 279973 | Kit, Thermal Cut-off (includes High Limit Thermostat) (Replaces:8318314) | |
|||
| 48 | WP8557403 | Thermostat, High Limit | |
|||
| 49 | WP8544770 | Housing Tab Heater Box | |
|||
| 50 | 8066099 | Bracket, Heater Box | |
|||
| 51 | WP3387230 | Screw | |
|||
| 52 | 8544776 | Flange, Heater Box | |
|||
| 53 | W10815373 | Valve, Water Inlet (Replaces:W10346403) | |
|||
| 54 | W10346402 | Bracket, Valve | |
|||
| 55 | WPW10347739 | Nozzle & Hose Assembly | |
|||
| 56 | W10905013 | Housing & Door Assembly (Replaces:W10219013) | |
|||
| 57 | W11156832 | Door, Lint Screen (Replaces:W10219016) | |
|||
| 58 | W11242876 | Spring, Lint Screen Door (Replaces:W10219015) | |
|||
| 59 | W10211899 | Seal, Blower Cover | |
|||
| 60 | WPW10336486 | Connector, Hose Y | |
|||
| 62 | 8529007 | Plug, Rear Bulkhead | |
|||
| 63 | W10665050 | Cap, Plug (Replaces:W10128544) | |
