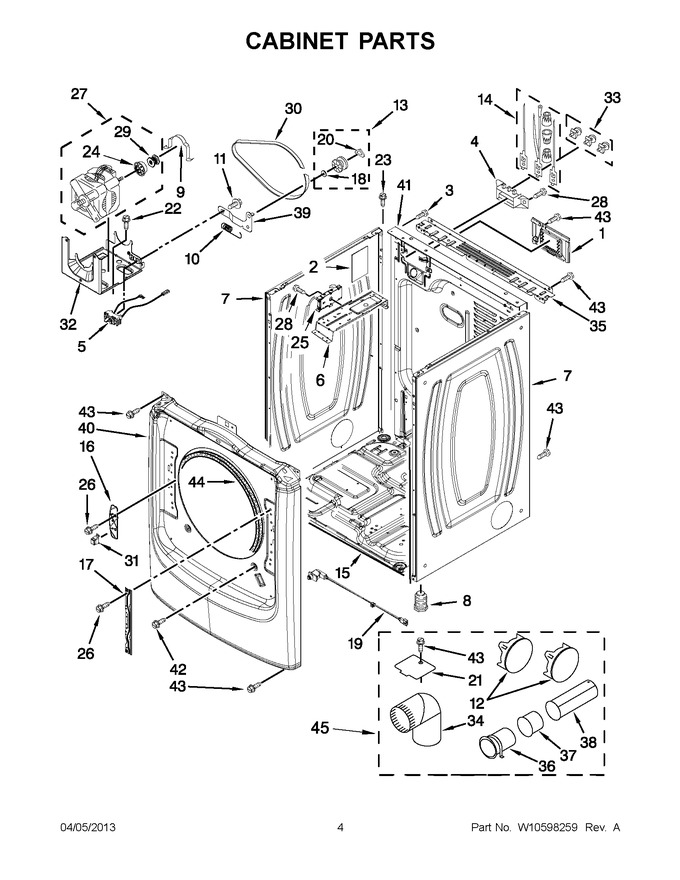

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10316167 | Cover, Terminal Block |  |
|||
| 2 | W11409002 | Pad, Foam (Replaces:W10504381) | |
|||
| 3 | W10850756 | Screw (Replaces:8533974) | |
|||
| 4 | WP3397659 | Block, Terminal | |
|||
| 5 | W10847984 | Switch, Broken Belt (Replaces:W10411936) | |
|||
| 6 | W10259611 | Bracket, Control | |
|||
| 7 | W11233548 | Panel, Side (white) (Replaces:W10468495) | |
|||
| WPW10468501 | Panel, Side (granite) | |
||||
| 8 | 49621 | Foot, Dryer (Replaces:3392100) | |
|||
| 9 | WPW10121316 | Clamp, Motor Mount | |
|||
| 10 | WPW10446781 | Spring, Idler | |
|||
| 11 | WP3389420 | Screw | |
|||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) | |
|||
| 13 | 279640 | Assembly, Pulley (Replaces:W10468057) | |
|||
| 14 | 279318 | Terminal, Brass & Tinned (includes Terminal Block Screw Kit) | |
|||
| 15 | W11215531 | Base, Cabinet (Replaces:8565046) | |
|||
| 16 | WPW10208250 | Strike, Door | |
|||
| 17 | W10315109 | Bracket, Door Hinge | |
|||
| 18 | WPW10121334 | Washer | |
|||
| 19 | W11427601 | Door Switch, Snap In (Replaces:W10569114) | |
|||
| 20 | WPW10512946 | Washer, Tri Ring | |
|||
| 21 | WPW10354249 | Plate, Cover | |
|||
| 22 | WP681414 | Screw (Replaces:343641) | |
|||
| 23 | WP308685 | Screw (Replaces:3393008) | |
|||
| 24 | WP3393657 | Restrainer, Belt | |
|||
| 25 | WPW10542001 | Control Board | |
|||
| 26 | WPW10288126 | Screw | |
|||
| 27 | WPW10508324 | Motor Assembly (Replaces:W10396038) | |
|||
| 28 | WP90767 | Screw | |
|||
| 29 | W10837625 | Pulley, Motor (Replaces:3389729) | |
|||
| 30 | WPW10112954 | Belt, Drive | |
|||
| 31 | W11240283 | Spring, Catch Assembly (Replaces:W10208401) | |
|||
| 32 | WPW10242878 | Bracket, Motor Mounting | |
|||
| 33 | 279393 | Screw Kit, Terminal Block | |
|||
| 34 | WPW10416072 | Elbow | |
|||
| 35 | WPW10208382 | Panel, Rear | |
|||
| 36 | WP8563747 | Pipe, Exhaust (medium) | |
|||
| 37 | WPW10331278 | Pipe, Exhaust (short) | |
|||
| 38 | WP8563749 | Pipe, Exhaust (long) | |
|||
| 39 | W10837240 | Bracket, Idler (Replaces:3388674) | |
|||
| 40 | WPW10363954 | Panel, Front (white) | |
|||
| WPW10363955 | Panel, Front (granite) | |
||||
| 41 | W10487430 | Panel, Rear | |
|||
| 42 | WP308685 | Screw (Replaces:3357011) | |
|||
| 43 | 3390647 | Screw | |
|||
| 44 | WP3387242 | Seal, Front Panel | |
|||
| 45 | W10323246 | Dryer Exhaust Kit (for Side & Bottom Venting) Kit, 4-way Venting) | |
|||
| NI | 49621 | Foot, Optional Extended Length Package Of 2) (not Included) (Replaces:279810) | |
