1 - Controls & Backsplash


2 - Top Panel & Lid


3 - Tub & Motor

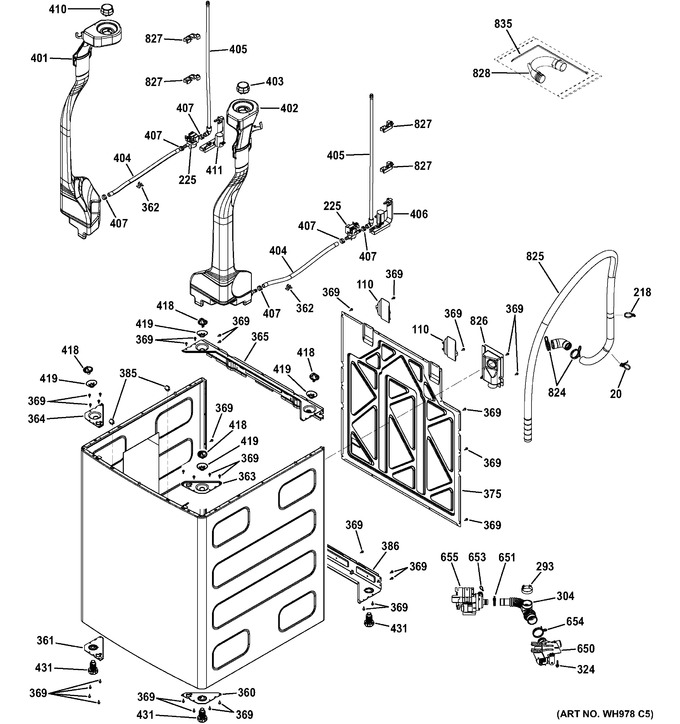

4 - Cabinet


Diagram #	Part Number		Description	Series	Find a Video
20	WH01X10702		Wire Tie
110	WH44X10314		Harness Cover
218	WH01X10217		Wire Tie/plug
225	WH12X10564		Sensor - Bulk Dispenser
293	WH01X10134		Clamp Hose
304	WH41X10311		Hose Inlet
324	WH02X10376		Screw Platform
360	WH16X10182		Front Leg Support Rh
361	WH16X10183		Front Leg Support Lh
362	WH02X10387		Clip
363	WH16X10166		Support Rod Front
364	WH16X10167		Support Rod Front
365	WH16X10169		Bar Cross Rear Top
369	WH2X1217		Scr 8-18 Ab Ihw 7/16 Sn
375	WH44X10307		Panel Rear
385	WH02X10360		Clip Spring Cover
386	WH16X10170		Bar Cross Rear Btm
401	WH47X22999		Tank Bulk Left Asm
402	WH47X23095		Tank Bulk Right Asm
403	WH43X10061		Cap Hrt Asm
404	WH41X10333		Hose Suction
405	WH41X10329		Hose Barbed
406	WH16X10176		Bracket Sensor
407	WH01X10687		Hose Clamp
410	WH43X10062		Cap Hrt Asm
411	WH16X10177		Bracket Sensor
418	WH01X10662		Ball Joint Upper
419	WH01X10663		Ball Socket Upper
431	WH02X10358		Foot And Base Asm
650	WH23X10047		Drain Pump Asm
651	WH01X10698		Clamp Hose
653	WH01X10715		Clip Harness
654	WH01X10699		Clamp
655	WH23X10048		Recirc Pump & Hose Asm
824	WH01X10700		Clamp
825	WH41X10319		Hose Drain
826	WH01X10668		Box Drain
827	WH01X10670		Drain Hose Clip
828	WH16X10178		Bracket Standpipe
835	WH01X10218		Strap
