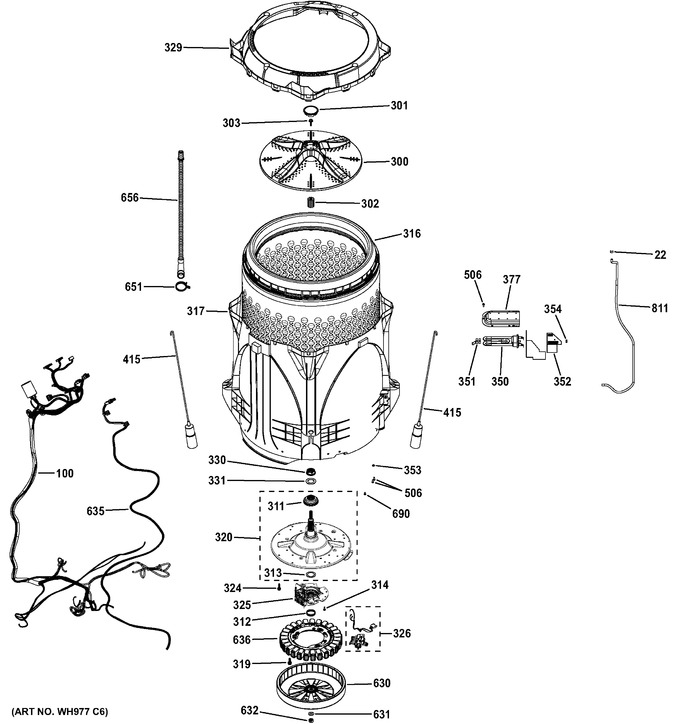

3 - Tub & Motor


4 - Cabinet


Diagram #	Part Number		Description	Series	Find a Video
22	WH01X10710		Clamp
100	WH19X10114		Harness Main - Orange
300	WH43X10060		Impeller
301	WH01X10669		Cap Impeller Asm
302	WH01X10676		Insert Impeller
303	WH02X10382		Scr 1/4 - 20, 2a Sinuloc
311	WH02X10362		Tub Seal
312	WH01X10712		Washer Impeller
313	WH01X10759		Washer Spring
314	WH02X10411		Scr 10-24x1/2
316	WH45X10129		Basket Asm 5.0 Cu Ft
317	WH45X10128		Tub Asm - 5.0
319	WH02X10380		Scr 5/16-24, 2a Sinuloc
320	WH38X10021		Platform & Brg Retnr Asm
324	WH02X10376		Screw Platform
325	WH05X10014		Mode Shifter Asm
326	WH12X10558		Rps Module
329	WH45X23414		Cover Tub
330	WH02X10363		Nut Hub
331	WH02X10364		Washer Hub
350	WH12X10565		Heater Asm
351	WH01X10674		Heater Support
352	WH01X10675		Heater Shield
353	WH01X10677		O-ring Thermistor
354	WH01X10690		Hex Nut (heater)
377	WH44X10309		Cover Filter
415	WH16X10174		Rod And Spring Asm
506	WD02X10067		Screw 8-16 Hxw 1/2 Ss
630	WH39X10011		Rotor Motor
631	WH02X10389		Washer Conical Spring
632	WH01X10691		Hex Nut 7/16-20,2b
635	WH19X10107		Harness Motor
636	WH39X10012		Stator
651	WH01X10698		Clamp Hose
656	WH41X10324		Hose Recirc Asm
690	WZ5X158		Screw Ground
811	WH41X10330		Hose
