1 - Controls & Backsplash


2 - Top Panel & Lid


3 - Tub & Motor


4 - Cabinet

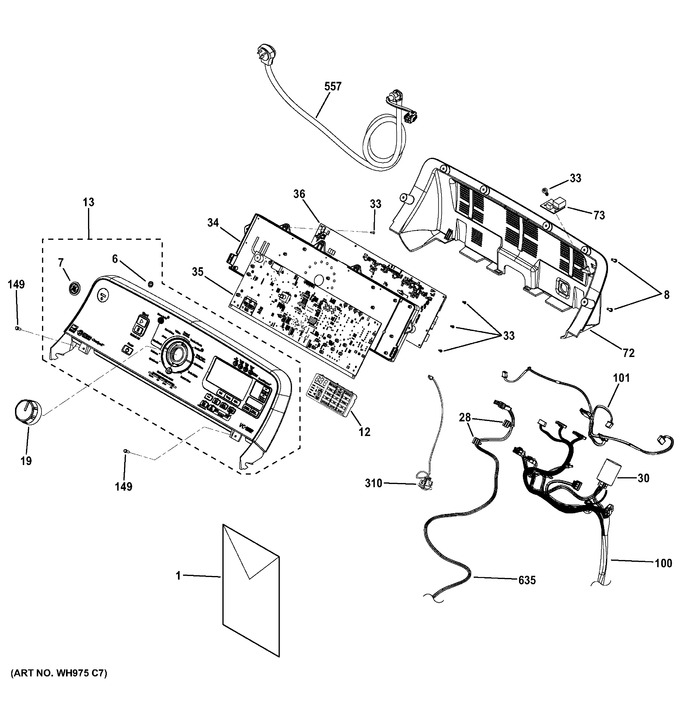

Diagram #	Part Number		Description	Series	Find a Video
1	31-16852		Pm Sheet Manual
	31-16702		Pm Instruction Install
	49-90460		Pm Manual U&c
	31-16696		Pm Installation Guide
	49-90467		Pm Quick Ref Guide
6	WH01X10711		Push Nut Fastener
7	WE19M10949		Badge Ge
8	WH02X10390		Scr 8-18x.520 Hwh Hi/lo
12	WH12X20313		Light Guide Asm
13	WH42X10962		Backsplash Bdy Asm
19	WH01X10679		Knob Asm
28	WH01X10709		Wire Tie
30	WH12X10408		Filter Power Line
33	WH02X10381		Scr 4-16 H/l Pnt10 .315s
34	WH01X10664		Plastic Housing
35	WH12X21454		Control And Firmware Asm
36	WH12X10584		Inverter Machine Control
72	WH46X10283		Rear Cover
73	WH12X10557		Dsm Module
100	WH19X10114		Harness Main - Orange
101	WH19X10118		Harness User Interface
149	WR01X10196		Screw 8-18 Hi/lo 5/8
310	WH12X10568		Tub Light
557	WH19X10121		Cord Power Asm Round
635	WH19X10107		Harness Motor
