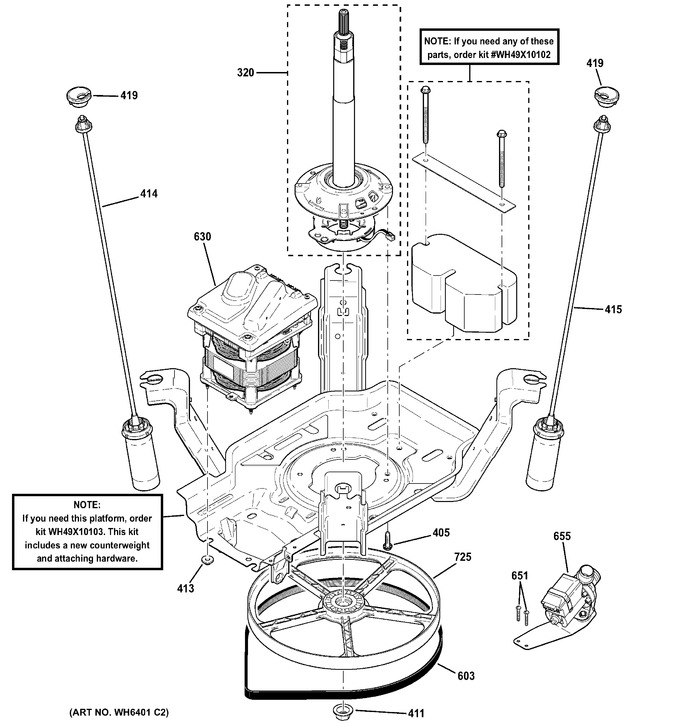

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
320 | WH38X10019 | Shaft And Tube Asm | ||||
405 | WH2X1201 | Scr 1/4-20 B Hxw 3/4 Sns | ||||
411 | WH2X1203 | Nut Pulley | ||||
413 | WH02X10233 | Hex Nut Overmold Asm | ||||
414 | WH16X10158 | Front Rod & Spring Asm | ||||
415 | WH16X10159 | Rear Rod & Spring Asm | ||||
419 | WH01X10001 | Socket Rod Support | ||||
603 | WH01X10302 | Belt - 6 Rib | ||||
630 | WH20X10094 | Motor And Inverter Asm | ||||
651 | WH02X10123 | Screw 1/4-20 Tpt 1h 1/2 | ||||
655 | WH23X10043 | Pump | ||||
725 | WH07X10019 | Drive Pulley |
