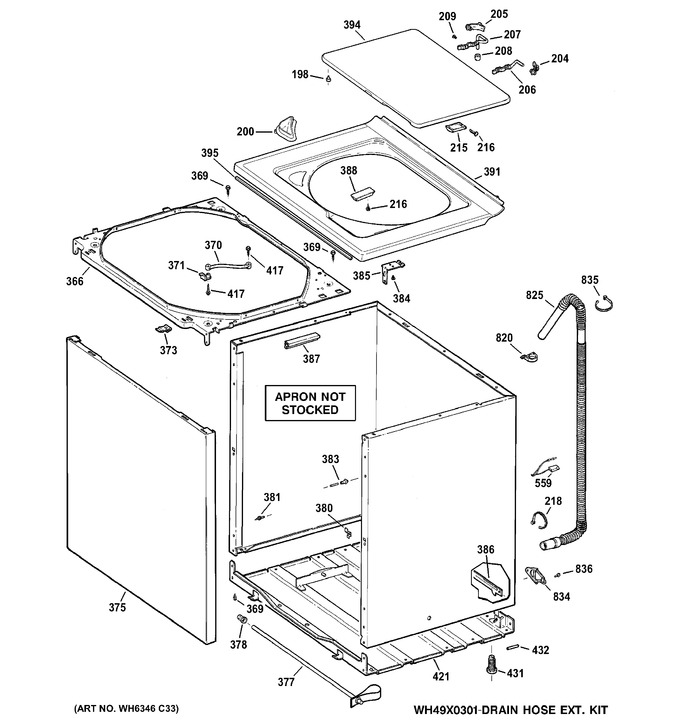

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 198 | WH1X2722 | Bumper Lid |  |
|||
| 200 | WH01X10057 | Funnel Bleach | |
|||
| 204 | WH1X2741 | Bushing Hinge | |
|||
| 205 | WH01X10025 | Bushing Hinge | |
|||
| 206 | WH1X2740 | Wireform Hinge (short) | |
|||
| 207 | WH1X2743 | Wireform Hinge | |
|||
| 208 | WH1X2742 | Bumper Hinge | |
|||
| 209 | WH2X1211 | Screw | |
|||
| 215 | WH12X10276 | Magnet Asm | |
|||
| 216 | WH02X10217 | Scr 8-16 B Flp .625 Zn | |
|||
| 218 | WH01X10217 | Wire Tie/plug | |
|||
| 366 | WH46X10269 | Weld Asm Rod Support | |
|||
| 369 | WH2X1217 | Scr 8-18 Ab Ihw 7/16 Sn | |
|||
| 370 | WH01X10046 | Wh1x2727 | |
|||
| 371 | WH1X2726 | Retainer Strap | |
|||
| 373 | WH02X10279 | Clip Locking | |
|||
| 375 | WH46X10281 | Panel Front Asm | |
|||
| 377 | WH46X344 | Shipping Bar Asm | |
|||
| 378 | WH1X2745 | Button Plug | |
|||
| 380 | WH2X1207 | Clip Ground | |
|||
| 381 | WH2X1190 | Stud Grounding | |
|||
| 383 | WH2X1189 | Pin Alignment | |
|||
| 384 | WH01X10423 | Scr 6-20 B Trt 3/8 S | |
|||
| 385 | WH01X10422 | Cover Clip | |
|||
| 386 | WH46X10094 | Bar Self Leveling | |
|||
| 387 | WH41X10036 | Conduit | |
|||
| 388 | WH12X10334 | Lid Switch Asm | |
|||
| 391 | WH44X10027 | Cover Asm Finished | |
|||
| 394 | WH44X20361 | Lid Asm Finished | |
|||
| 395 | WH46X10091 | Foam Barrier | |
|||
| 417 | WH2X694 | Scr 10-12 A Hx 1/2 S | |
|||
| 421 | WH46X10145 | Base Asm | |
|||
| 431 | WH2X1187 | Leg Leveling | |
|||
| 432 | WH2X1188 | Pin Roll | |
|||
| 559 | WH12X538 | Housing Terminal | |
|||
| 820 | WH1X2725 | Clip Anti-siphon | |
|||
| 825 | WH41X10096 | Hose Drain External | |
|||
| 834 | WH16X513 | Retainer Hose | |
|||
| 835 | WH01X10218 | Strap | |
|||
| 836 | WH02X10162 | Scr 8-18 Ab Ihwp 7/8 S | |
