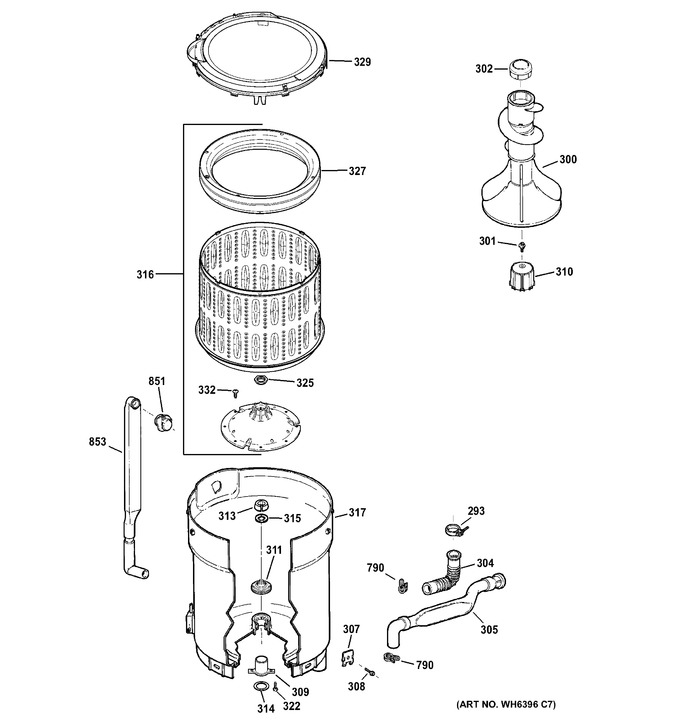

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 293 | WH01X10134 | Clamp Hose |  |
|||
| 300 | WH43X10034 | Agitator Asm Multi | |
|||
| 301 | WH02X10237 | Scr 1/4-20 Mch Hxw 5/8 S | |
|||
| 302 | WH43X139 | Disp Asm Fs Agitator Cap | |
|||
| 304 | WH41X10163 | Hose Drain Inlet | |
|||
| 305 | WH41X10285 | Hose Drain Asm | |
|||
| 307 | WH1X2730 | Clamp - Tub | |
|||
| 308 | WH02X10267 | Scr 5/16-18 Tpt Ihw S N | |
|||
| 309 | WH2X1198 | Bearing Tub | |
|||
| 310 | WH43X10032 | Coupling Agitator | |
|||
| 311 | WH02X10383 | Seal Tub | |
|||
| 313 | WH2X1195 | Ring Split | |
|||
| 314 | WH2X1197 | Washer Tub Bearing | |
|||
| 315 | WH2X1199 | Flat Washer | |
|||
| 316 | WH45X10112 | Basket Hub & Ring Stainl | |
|||
| 317 | WH45X20473 | Tub Asm | |
|||
| 322 | WH2X1194 | Screw | |
|||
| 325 | WH2X1193 | Nut Hub | |
|||
| 327 | WH45X10114 | Balance Ring Asm | |
|||
| 329 | WH45X10113 | Cover Tub | |
|||
| 332 | WH02X10139 | Scr 10-32 B Trt-25 5/8 | |
|||
| 790 | WH1X2036 | Clamp Hose | |
|||
| 851 | WH1X2729 | Gasket Flood Head | |
|||
| 853 | WH41X10297 | Hose Flood | |
