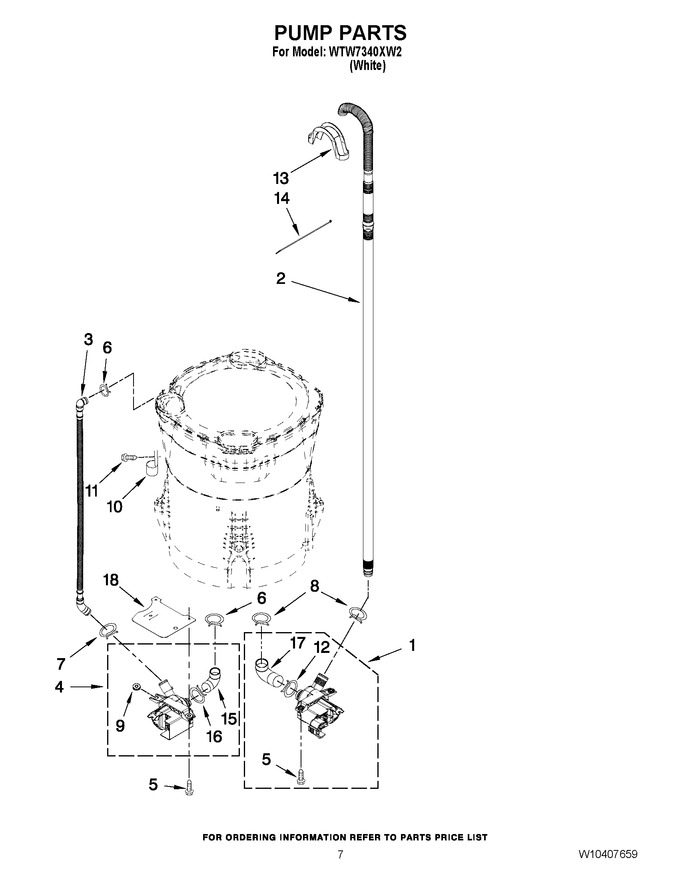

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10536347 | Pump Assembly, Drain (Replaces:W10281682) |  |
|||
| 2 | WPW10236686 | Hose, Drain | |
|||
| 3 | WP8543774 | Hose, Recirc | |
|||
| 4 | WPW10233462 | Pump Assembly, Recirc (Replaces:W10049400) | |
|||
| 5 | WPW10004910 | Screw, 12-16 X 1.125 | |
|||
| 6 | WP285655 | Clamp, Hose (Replaces:370449) | |
|||
| 7 | WP8269146 | Clamp, Hose | |
|||
| 8 | WP285655 | Clamp, Hose (Replaces:8317496) | |
|||
| 9 | 280155 | Grommet, Pump Mounting (Replaces:8182771) | |
|||
| 10 | 8534021 | Clamp, Recirc Hose Retainer | |
|||
| 11 | WPW10109200 | Screw, 10-16 X 3/4 (Replaces:8533943) | |
|||
| 12 | WP285655 | Clamp, Drain Pump Hose (Replaces:8182768) | |
|||
| 13 | WP8576642 | Retainer, Drain Hose | |
|||
| 14 | WPW10339879 | Cable Tie | |
|||
| 15 | WP8182769 | Hose, Recirc Pump | |
|||
| 16 | WP3367052 | Clamp, Recirc Pump Hose (Replaces:8182770) | |
|||
| 17 | WP8182767 | Hose, Drain Pump | |
|||
| 18 | 8578572 | Shield, Recirc Pump | |
