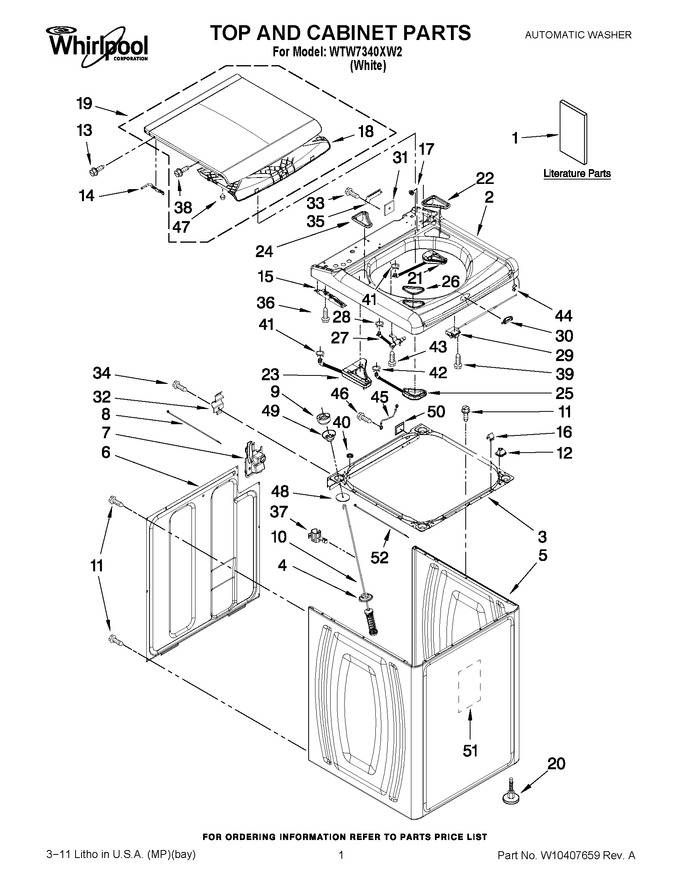

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10385943 | Installation Instructions (energy Guide) |  |
|||
| W10338694 | Installation Instructions (tech Sheet) | |
||||
| W10373816 | Installation Instructions (use & Care Guide) | |
||||
| W10240439 | Installation Instructions (spanish) | |
||||
| W10240438 | Installation Instructions (english/french) | |
||||
| 2 | 3957177 | Top | |
|||
| 3 | W10198634 | Frame Assembly, Cabinet Top (includes Item 50) (Replaces:W10162604) | |
|||
| 4 | WP8564017 | Cup, Suspension | |
|||
| 5 | W10434974 | Cabinet (Replaces:8566097) | |
|||
| 6 | WP8566090 | Panel, Rear | |
|||
| 7 | WPW10160572 | Retainer, Drain Hose Storage | |
|||
| 8 | WPW10155270 | Cable Tie | |
|||
| 9 | W10198919 | Ball, Suspension (set Of 4 - Includes Item 49) (Replaces:W10111536) | |
|||
| 10 | W10247710 | Damper Assembly, Tub Suspension (set Of 4-includes Items 4, 9, 48 & 49) (Replaces:W10237427) | |
|||
| 11 | WP489069 | Screw, 8-18 X 3/8 (Replaces:1157158) | |
|||
| 12 | W10042120 | Locator, Top | |
|||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting | |
|||
| 14 | WP8563964 | Hinge Arm, Lid | |
|||
| 15 | WPW10305277 | Hinge, Spring Assembly (left) | |
|||
| WPW10305278 | Hinge, Spring Assembly (right) | |
||||
| 16 | WP8563785 | Lock, Top-front | |
|||
| 17 | WP8546627 | Bearing, Lid Hinge | |
|||
| 18 | WP8572012 | Lid-inner | |
|||
| 19 | WP8572026 | Lid Assembly | |
|||
| 20 | WPW10240448 | Foot Assembly, Leveling | |
|||
| 21 | WPW10172146 | Dispenser, Fabric Softener | |
|||
| 22 | WPW10136371 | Bezel, Fabric Softener Dispenser | |
|||
| 23 | WPW10187307 | Dispenser, Stain Remover | |
|||
| 24 | WP8563876 | Bezel, Stain Remover Dispenser | |
|||
| 25 | WPW10172154 | Dispenser, Detergent | |
|||
| 26 | WP8563877 | Bezel, Detergent Dispenser | |
|||
| 27 | WPW10106990 | Nozzle Assembly, Fresh Water | |
|||
| 28 | 371503 | Clamp, Hose | |
|||
| 29 | WPW10619844 | Lock Assembly, Lid (Replaces:W10059230) | |
|||
| 30 | WP8572019 | Bezel, Lid Lock | |
|||
| 31 | W10161707 | Top Foam Seal | |
|||
| 32 | WP8564456 | Hinge, Top | |
|||
| 33 | 3390647 | Screw, 8-18 X 1/2 | |
|||
| 34 | WP681414 | Screw, 10-16 X 1/2 (Replaces:343641) | |
|||
| 35 | 8563941 | Cover, Harness | |
|||
| 36 | WP693995 | Screw, 8-18 X 3/8 | |
|||
| 37 | 8543784 | Bracket, Drain Hose | |
|||
| 38 | 8563892 | Screw, 8-18 X 5/8 | |
|||
| 39 | WP8281136 | Screw, 10-16 X 3/4 | |
|||
| 40 | 8576476 | Spacer, Rear (cabinet/top) | |
|||
| 41 | 370451 | Clamp, Hose | |
|||
| 42 | 371503 | Clamp, Hose | |
|||
| 43 | 3400061 | Screw, 10-16 X 9/16 | |
|||
| 44 | WP90016 | Clip, Harness | |
|||
| 45 | 3184020 | Wire, Ground Jumper (Replaces:8281736) | |
|||
| 46 | W10846509 | Screw, 10-32 X 5/8 (Replaces:3400076) | |
|||
| 47 | W10076780 | Bumper, Lid | |
|||
| 48 | WP8577896 | Washer, Suspension Umbrella | |
|||
| 49 | W10198919 | Bushing, Suspension (set Of 4-includes Item 9) (Replaces:W10167599) | |
|||
| 50 | 8578386 | Shield, Wire Harness | |
|||
| 51 | W10177046 | Cabinet-damper, Sound | |
|||
| 52 | WPW10339879 | Cable Tie (Replaces:W10063340) | |
