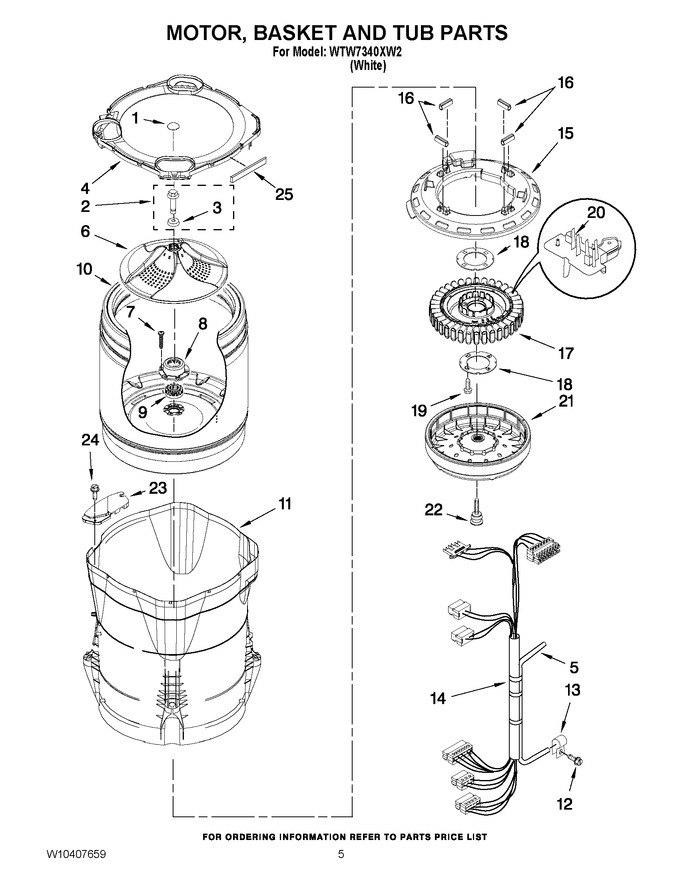

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WPW10305259 | Cap, Impeller | ||||
2 | WPW10076270 | Screw & Washer Assembly | ||||
3 | WPW10076260 | Washer | ||||
4 | WPW10309696 | Tub Ring (includes Item 25) | ||||
5 | WP353244 | Hose, Pressure Switch (Replaces:8572540) | ||||
6 | W11252784 | Impeller (washplate) (Replaces:W10286241) | ||||
7 | WP8533953 | Screw, 8-16 X 1.00 | ||||
8 | W10820039 | Hub, Basket-driven (includes Item 9) (Replaces:W10118114) | ||||
9 | W10820039 | Hub, Basket-driver (includes Item 8) (Replaces:8545953) | ||||
10 | W10310957 | Basket Assembly (includes Item 7,8, & 9) | ||||
11 | W10193886 | Tub & Drive Shaft Assembly (Replaces:W10128830) | ||||
12 | 8533957 | Screw, 10-16 X 1/2 | ||||
13 | W10005430 | Clamp, Pressure Hose Retainer | ||||
14 | WPW10137697 | Harness, Lower (includes Item 5) | ||||
15 | WPW10137698 | Shield, Drive Motor (includes Item 16) | ||||
16 | 280142 | Tube, Buffer (set Of 4) (Replaces:8565172) | ||||
17 | WPW10419333 | Stator, Motor (includes Item 18) (Replaces:8565170) | ||||
18 | WP8557836 | Plate, Stator (set Of 2) | ||||
19 | WP8534042 | Screw, 1/4-20 X .968 | ||||
20 | WPW10178988 | Rps Assembly | ||||
21 | 280146 | Rotor, Main Drive Motor (includes Item 22) (Replaces:8565177) | ||||
22 | N/P | Bolt, Rotor Assembly Non-serviceable (supplied W/rotor) | ||||
23 | WPW10222008 | Filter, Dual Pump Hood | ||||
24 | WP8533928 | Screw, 8-18 X 3/4 | ||||
25 | W10205824 | Absorber, Impact |
