1 - Gas & Burner Parts


2 - Control Panel & Cooktop

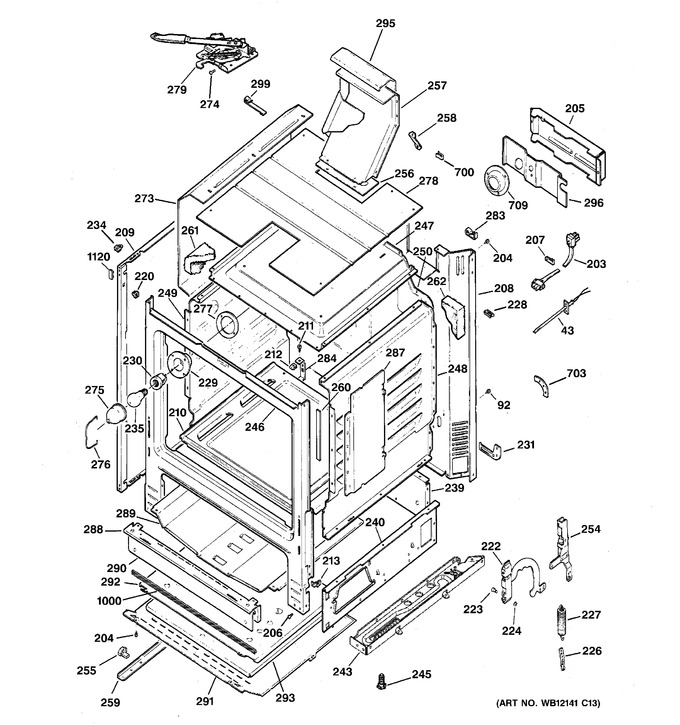

3 - Body Parts


4 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Find a Video
43	WB20K10015		Temperature Sensor
92	WB1X1261		Screw Ground
203	WB18K7		Line Cord
204	WB1K42		Screw (blk)
	WZ04X0345		Screw 8-18x5/8 Hxw
205	WB34K6		Cover Back Panel
206	WB1K21		Screw
207	WB2K36		Clamp Cable
208	WB63K21		Range Back
209	WB63K10119		Panel Side Bk
210	WB35K10035		Bottom Oven Asm
211	WB1K5		Bottom Oven Screw
212	WB1K2		Speednut
213	WB1K3		Nut Speed
220	WB2K8		Grommet
222	WB10K12		Hinge Asm Guide
223	WB2X6195		Pin Hinge Door
224	WB2X1082		Ring Retaining
226	WB2K11		Hook Door Spring
227	WB9K5		Spring Door
228	WB2X7066		Clip Wire
229	WB8K1		Housing Receptacle
230	WB08T10004		Push-in Recepticle
231	WB2K12		Arm Anti Tip
	WB2K20		Bracket Asm Anti-tip
234	WB2K66		Guide Support Rgtp
235	STD372401		Oven Lamp
239	WB63K10039		Panel Rear Broil
240	WB63K2		Panel Side Broil Rt
	WB63K3		Panel Side Broil Lft
243	WB63K10027		Base Support Rt
	WB63K10028		Base Support Lf
245	WB02X10521		Leg Leveler
246	WB63K10123		Frame Weld Asm
247	WB53K10004		Oven Top
248	WB53K2		Oven Side Right
249	WB53K3		Oven Side Left
250	WB53K10024		Oven Back
254	WB1K53		Screw Mtg Hinge (torx)
	WB10K10009		Support Asm Rivet Lf
	WB10K10010		Support Asm Rivet Rt
255	WB02K10158		Drawer Support
256	WB32K1		Gasket Vent
257	WB38K10001		Vent Asm
258	WB38K2		Brace Vent
259	WB39K16		Rail Drawer
260	WB32K2		Gasket Oven Seal Lg
261	WB35K10090		Insulation Oven Wrap
262	WB35K8		Insulation Oven Back
273	WB53K11		Guard Insul. Oven Right
	WB53K12		Guard Insulation Left
274	WB1K44		Screw Latch
275	WB8K5		Glass Oven Lamp
276	WB2K27		Bail
277	WB32K5		Gasket Oven Light
278	WB53K10031		Guard Top Insulation
279	WB02K10141		Latch Assembly
283	WB2K31		Clip Cable
284	WB2K32		Bottom Oven Brackt Suppo
287	WB34K30		Guard Radiation Rt
	WB34K31		Guard Radiation Lft
288	WB63K15		Brace Bottom
289	WB34K10086		Lower Heat Shield
290	WB34K12		Shield Radiation
291	WB63K16		Guard Bottom
292	WB63K10117		Bottom Inner Guard
293	WB63K18		Guard Bottom Middle
295	WB35K10003		Insulation-vent
296	WB34K13		Shield Heat Inner
299	WB2K38		Clip Wire
700	WB2K30		Retainer-insulation Vent
703	WB2K41		Bracket Oven Corner
709	WB8K4		Retainer Insulation Lamp
1000	WB04K10021		Trim Front Frame
1120	WB02K10178		Bumper
