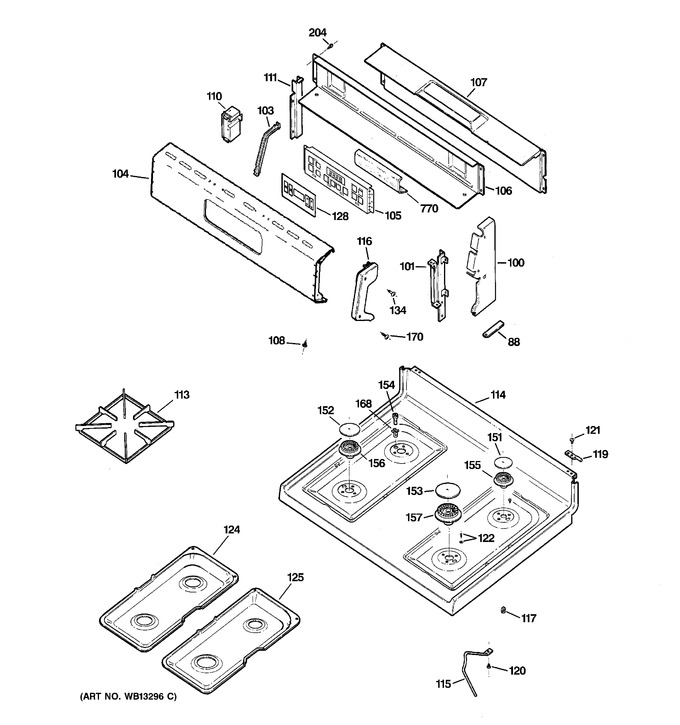

Diagram #	Part Number		Description	Series	Find a Video
88	WB2K62		Pad Felt (2")
	WB2K85		Pad Felt (wh)
100	WB07K10022		Cover End Rt (blk)
	WB07K10023		Cover End Lt (blk)
101	WB37K17		Plate End Right
	WB37K18		Plate End Left
103	WB02K10005		Bracket-timer
104	WB36K10438		Backsplash Asm - Trim Wm
105	WB27K10210		Control T09
106	WB34K10003		Cover Back Upper
107	WB34K10062		Cover Back Lower
108	WB1X5364		Screw (cr)
110	WB18K10039		Harness Hv
	WB18K10042		Harness Module
	WB13K10018		Spark Module 4+0
111	WB34K5		Cover Wire
113	WB31K10016		Grate (blk)
114	WB62K10051		Cooktop Bk
115	WB2K91		Support Rangetop
116	WB07K10004		End Cap Lt (blk)
	WB07K10003		End Cap Rt (blk)
117	WB2K17		Pin Locator
119	WB14K5		Pin Hinge
120	WB1K45		Screw Washer Asm
121	WB1K1		Screw
122	WB01K10008		Screw Cktp
124	WB34K10010		Pan Unit-left (blk)
125	WB34K10009		Pan Unit-right (blk)
128	WB27K10118		Overlay T09-b Hp (blk)
134	WB01K10003		Screw-mtg End Cap (blk)
151	WB29K10009		Cap-burner Small (blk)
152	WB29K10001		Cap-burner Med (blk)
153	WB29K10006		Cap-burner Large (blk)
154	WB13K10014		Electrode Top
155	WB16K10024		Burner-small
156	WB16K10055		Burner Medium (9500)
157	WB16T10046		Burner-large 12k
168	WB01K10007		Clip-electrode
170	WB1X5716		Screw (blk)
204	WB1K42		Screw (blk)
	WZ04X0345		Screw 8-18x5/8 Hxw
770	WB35K10040		Insulation Control
