1 - Gas & Burner Parts


2 - Control Panel & Cooktop


3 - Body Parts


4 - Door & Drawer Parts

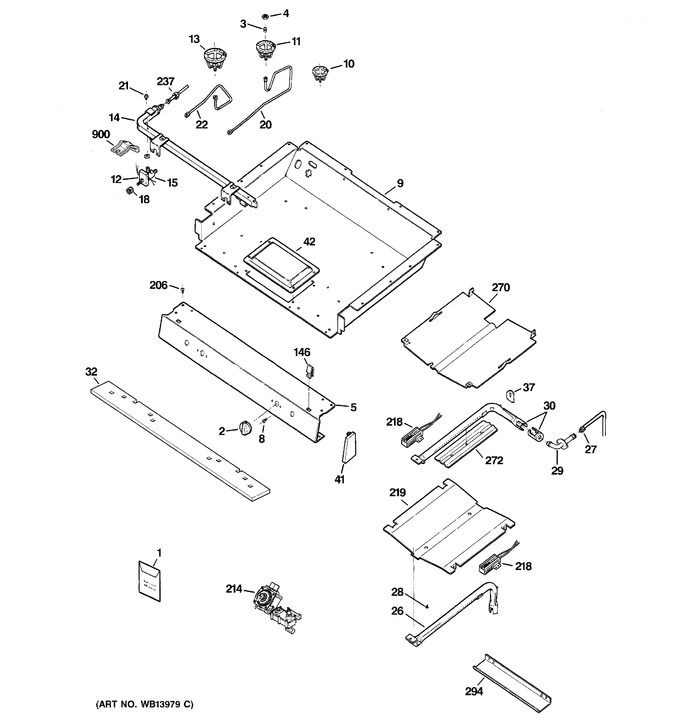

Diagram #	Part Number		Description	Series	Find a Video
1	WB28K10161		Conversion Kit Lp Asm
	49-85132		Pm Use & Care Manual
	31-21257		Pm Mini-manual Elect
2	WB03K10035		Knob-top Burners (blk)
3	WB28K10023		Orifice-lp Med Lf 11000
	WB28K10031		Orifice-lp Rr
	WB28K10032		Orifice-lp Lf/rf 9500
4	WB01K10037		Economic Nut
5	WB36K10439		Panel Manifold Sp
8	WB01K10002		Screw 8-32
9	WB63K10037		Box Burner Sp
10	WB02K10079		Ckt Bracket Sm
11	WB02K10078		Ckt Bracket Mid
12	WB24K10042		Rotary Switch
	WB24K10037		Burner Box Harness Switc
13	WB02K10080		Ckt Bracket Lg
14	WB28K10425		Manifold Pipe
15	WB28K10397		Valve Burner 270 5000
	WB28K10396		Valve Burner 270 9500
	WB28K10395		Valve Burner 270 11000
18	WB2K24		Cover Valve
20	WB28K10187		Rear Orifice Hold Rt Ng
	WB28K10188		Rear Orif.h 9500 Lf Ng
21	WB01K10071		Screw Thermostat
22	WB28K10189		Front Orif H Right Ng
	WB28K10190		Front Orif 150n 9500 Ng
26	WB16K22		Burner Bake
27	WB28K10168		Tube Burner Supply
28	WB1K50		Screw Mtg Igniter
29	WB28K10310		Elbow Hi Broil
30	WB16K10008		Burner Broil
32	WB35K10026		Insulation Burner Box
37	WB34K14		Cover Igniter
41	WB07K10263		Cap End Lf
	WB07K10262		Cap End Rt
42	WB63K22		Cover Burner Box
146	WB2K52		Clip Rangetop
206	WB1K21		Screw
214	WB19K10014		Dual Combi Assy
218	WB13K3		Igniter Burner Broil
	WB13K10027		Igniter
219	WB49K44		Flame Spreader
237	WB28K10477		Tube Manifold Supply Asm
270	WB49K10003		Oven Deflector
272	WB34K10		Shield Broil
294	WB63K10040		Cover Terminal Dual Comb
900	WB02K10147		Support Valve
