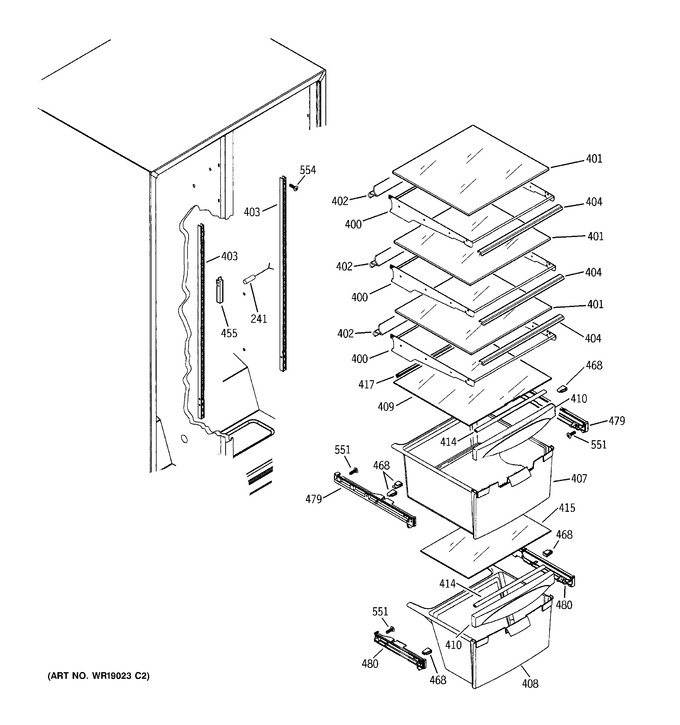

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 241 | WR50X10027 | Sensor Temp |  |
|||
| WR50X10034 | Sensor Temp | |
||||
| 400 | WR71X10239 | Shelf Cant | |
|||
| 401 | WR32X10169 | Shelf Cant Glass | |
|||
| 402 | WR38X10212 | Reflector Glass Shelf | |
|||
| 403 | WR72X254 | Track Cant Shelf | |
|||
| 404 | WR38X10211 | Trim Glass Shelf | |
|||
| 407 | WR32X10133 | Pan Veg | |
|||
| 408 | WR32X10131 | Pan Meat | |
|||
| 409 | WR32X10168 | Cover Pan Glass | |
|||
| 410 | WR17X11153 | Handle Pan Meat | |
|||
| 414 | WR14X10084 | Gasket Pan Cover Frt | |
|||
| 415 | WR32X10129 | Cover Pan Glass | |
|||
| 417 | WR14X10080 | Gasket Shield Lower | |
|||
| 455 | WR02X10622 | Cover Sensor Ff | |
|||
| 468 | WR1X2048 | Bearing Slide | |
|||
| 479 | WR72X240 | Slide Asm Rh | |
|||
| WR72X239 | Slide Asm Lh | |
||||
| 480 | WR72X241 | Slide Asm Lh | |
|||
| WR72X242 | Slide Asm Rh | |
||||
| 551 | WZ04X0244 | Scr 8-18 Ab Rndw 5/8 Ss | |
|||
| 554 | WR1X2141 | Scr 10-24 Tr Hxw I S | |
