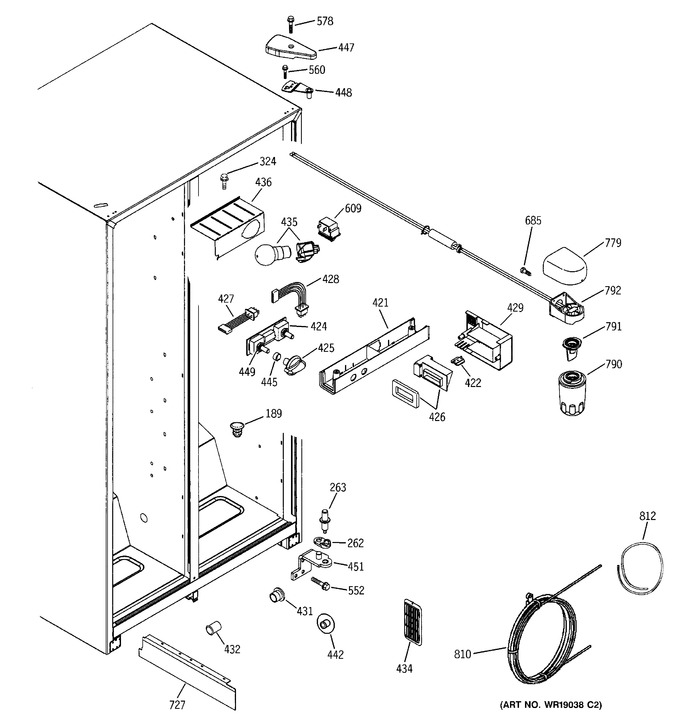

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 189 | WR02X10683 | Plug Hole Midlight |  |
|||
| 262 | WR02X10568 | Hinge Cam Riser | |
|||
| 263 | WR02X10592 | Pin Hinge Btm Adj | |
|||
| 324 | WR2X7051 | Plug Button Sm Wh | |
|||
| 421 | WR14X10044 | Gasket Control Housing | |
|||
| WR17X10876 | Housing Control | |
||||
| 422 | WR02X10546 | Clip Damper Cover | |
|||
| 424 | WR55X10040 | Board Asm Encoder | |
|||
| 425 | WR02X10570 | Knob Control | |
|||
| 426 | WR14X10047 | Gasket Damper | |
|||
| WR60X10079 | Damper & Thermister Asm | |
||||
| 427 | WR23X10246 | Harness Lt & Sw | |
|||
| 428 | WR23X10245 | Harness Lt & Sw | |
|||
| 429 | WR02X10618 | Cover Damper | |
|||
| 431 | WR2X9299 | Cap Mullion Duct | |
|||
| 432 | WR02X10561 | Duct Mullion | |
|||
| 434 | WR17X10262 | Grille Air Return | |
|||
| 435 | 60A | Lamp 60w Appl | |
|||
| WR02X10591 | Socket & Terminal | |
||||
| 436 | WR02X10578 | Reflector Lamp | |
|||
| 442 | WR02X10763 | Cover Meat Pan Duct | |
|||
| 445 | WR02X10581 | Ring Compression | |
|||
| 447 | WR02X10614 | Cover Hinge Bq | |
|||
| 448 | WR13X10122 | Hinge Top Asm Ff | |
|||
| 449 | WR01X10191 | Nut Special | |
|||
| 451 | WR13X10154 | Hinge Btm & Pin Asm | |
|||
| 552 | WR01X10034 | Scr 12-24 Tt Ih .811 S | |
|||
| 560 | WR01X10195 | Scr 12-24 Ca Hx 7/8 S | |
|||
| 578 | WZ02X0503 | Scr 8-32 Ma Pa 3/8 S | |
|||
| 609 | WR23X10162 | Switch Light | |
|||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh | |
|||
| 727 | WR17X10723 | Separator Air Hiside | |
|||
| 779 | WR02X11169 | Cover Water Filter | |
|||
| 790 | HWF | Filter Canister | |
|||
| 791 | WR02X10577 | Plug Bypass Filter | |
|||
| 792 | WR17X11028 | Filter Asm And Tube | |
|||
| 810 | WR17X11140 | Water Storage Coil | |
|||
| 812 | WR17X11141 | Tube Plastic | |
