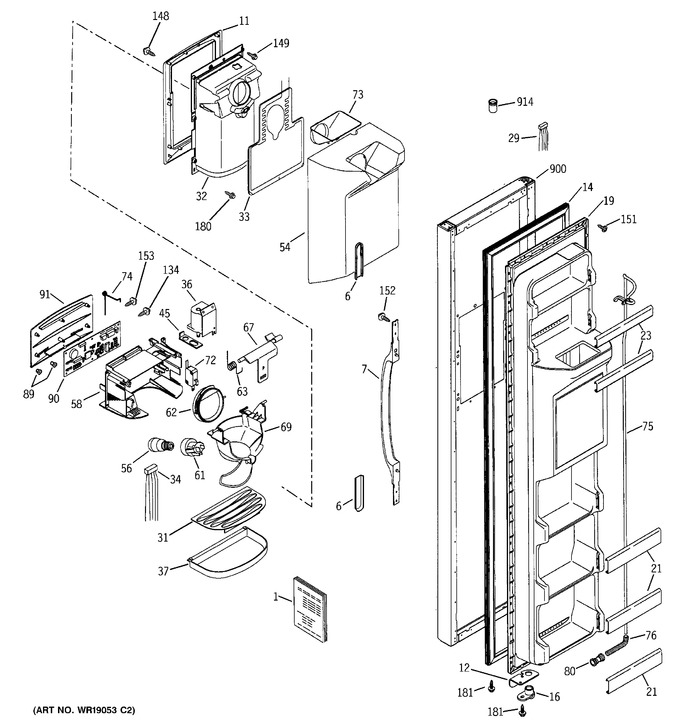

Diagram #	Part Number		Description	Series	Find a Video
1	39-60145		Pm Guide Owners
	31-51351		Pm Mini Manual Wiring
6	WR12X10424		Tail Handle Sxs Bq
7	WR12X10349		Handle Sxs Bq
11	WR38X10265		Trim Recess Disp Bq
12	WR02X10612		Plate Door Stop Fz Bq
14	WR24X10053		Gasket Door Fz Wh
16	WR02X10566		Hinge Cam & Thimble Fz
19	WR77X10035		Door Inner Fz Disp
21	WR17X10879		Front Door Shelf
23	WR17X10880		Front Door Shelf
29	WR23X10263		Harness Comm Fz Dr
31	WR17X10751		Grill Recess Bq
32	WR17X11068		Recess Ice Dispenser Bq
33	WR51X10064		Heater Recess
34	WR23X10166		Harness Recess Disp
36	WR62X10020		Solenoid Asm
37	WR02X10615		Cup Recess Bq
45	WR2X8818		Retainer Recess Door
54	WR17X10720		Insulation Recess
56	WR02X10675		Light Dispenser
58	WR17X11121		Housing Shield Disp Bq
61	WR2X9561		Socket Lamp E12
62	WR17X3093		Door Recess Asm
63	WR02X10585		Spring Recess Door
67	WR17X10706		Crank Door Recess
69	WR17X11149		Funnel Ice Disp Bq
72	WR23X10224		Switch
73	WR17X10736		Chute Ice Asm
74	WR02X10584		Spring Funnel
75	WR17X11116		Tube Formed Asm
76	WR2X8933		Sleeve Water Line
80	WR02X10471		Union Connector
89	WR02X10704		Pin Switch Short
	WR02X10705		Pin Switch Tall
90	WR55X10115		Board Asm Disp
91	WR55X10059		Bracket & Overlay Bq
134	WR01X10019		Scr 6-10 Pl Flp 1/2 S
148	WR01X10197		Scr 8-18 Hi/lo Trt.400 S
149	WR01X10196		Scr 8-18 Hi/lo 5/8
151	WR1X1554		Scr 8-18 Ab Ihxw 1/2 S
152	WR01X10038		Scr 8-18 Ab Fltr 5/8 S
153	WR1X1505		Scr Recess Disp 8-18 Ab
180	WR1X1966		Screw 6-32 Pl Ihw 3/8
181	WR01X10215		Scr 10-32 Tt Hxw 3/4 S
900	WR78X10394		Door Foam Asm Fz Bq
914	WR01X10200		Thimble Door Top
