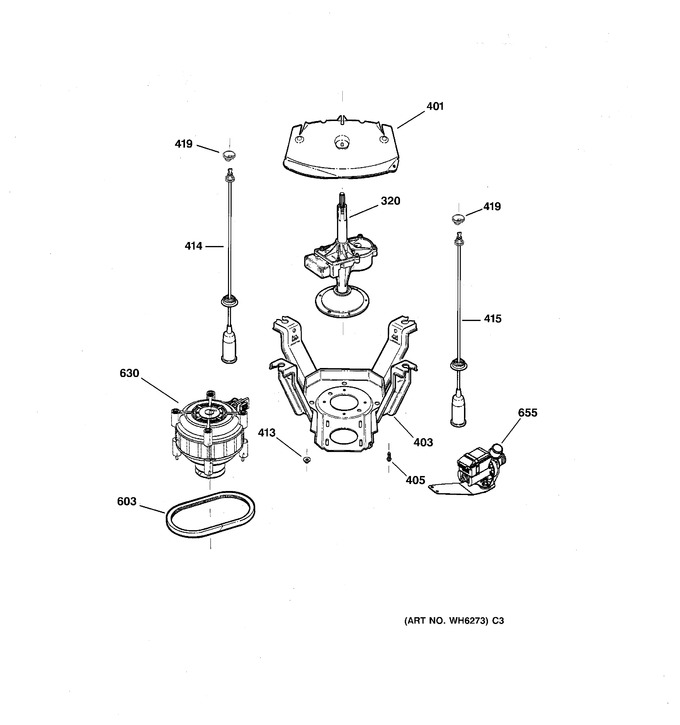

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
320 | WH38X10002 | Transmission & Brake Asm | ||||
401 | WH45X10046 | Shield Tub | ||||
403 | WH17X10003 | Leg & Platform Weld Asm | ||||
405 | WH2X1201 | Scr 1/4-20 B Hxw 3/4 Sns | ||||
413 | WH2X1204 | Nut Motor Hex | ||||
414 | WH16X544 | Rod & Spring Asm | ||||
415 | WH16X543 | Rod & Spring Asm | ||||
419 | WH01X10001 | Socket Rod Support | ||||
603 | WH1X2026 | Belt | ||||
630 | WH20X10014 | Motor Asm I Spd Psc | ||||
655 | WH23X10013 | Pump |
