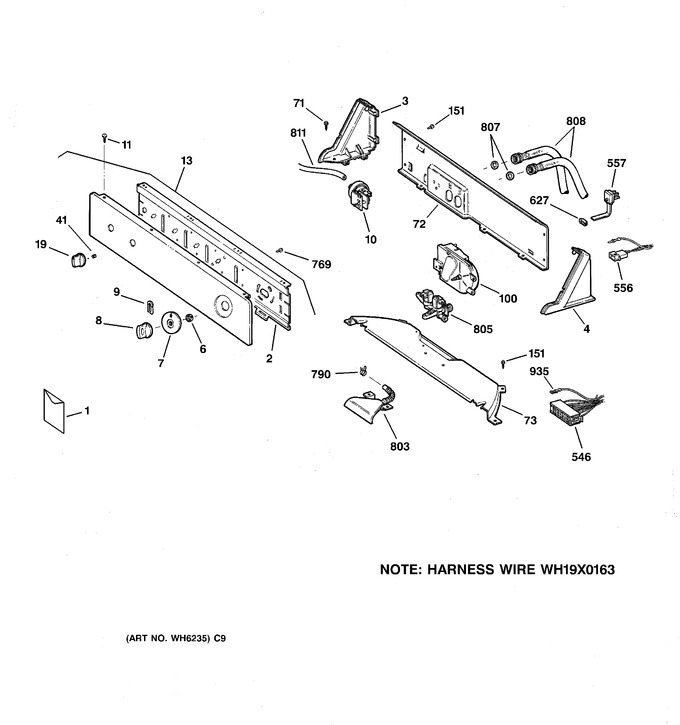

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 49-90132 | Pm Manual Use & Care |  |
|||
| 31-15441 | Pm Instruction Install | |
||||
| 31-15523 | Pm Sheet Mini Manual | |
||||
| 2 | WH46X10081 | Support Switch | |
|||
| 3 | WH42X2397 | End Cap Lh Wh | |
|||
| 4 | WH42X2398 | End Cap Rh Wh | |
|||
| 6 | WH2X650 | Ring Compression | |
|||
| 7 | WH11X10033 | Dial Asm | |
|||
| 8 | WH01X10061 | Knob Asm Control | |
|||
| 9 | WH1X2117 | Clip Spring | |
|||
| 10 | WH12X10076 | Switch Pressure | |
|||
| 11 | WH02X10089 | Scr 8-18 Ab Flt 9/16 Sn | |
|||
| 13 | WH42X10412 | Control Panel Asm | |
|||
| 19 | WH01X10060 | Knob & Clip Asm | |
|||
| 41 | WE1X980 | Clip Knob | |
|||
| 71 | WH2X1205 | Scr 8-18 B 1/2 Hxw P | |
|||
| 72 | WH46X10083 | Panel Back | |
|||
| 73 | WH46X10092 | Cover Bottom | |
|||
| 100 | WH12X10202 | Timer Asm Washer | |
|||
| 151 | WH02X10126 | Scr 8-18 B 1hw 1/2 Sn | |
|||
| 546 | WH12X10205 | Housing Terminal Blk | |
|||
| 556 | WH12X497 | Housing Terminal | |
|||
| 557 | WH19X10021 | Cord Power Asm | |
|||
| 627 | WH12X10208 | Self Locking Strain Relf | |
|||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S | |
|||
| 790 | WH1X2036 | Clamp Hose | |
|||
| 803 | WH41X10077 | Hose & Water Inlet | |
|||
| 805 | WH13X86 | Valve Asm Water | |
|||
| 807 | WH2X42 | Hose Washer | |
|||
| 808 | WH41X58 | Hose Asm Intake | |
|||
| 811 | WH41X365 | Hose Pressure Switch | |
|||
| 935 | WD1X1434 | Terminal Special | |
