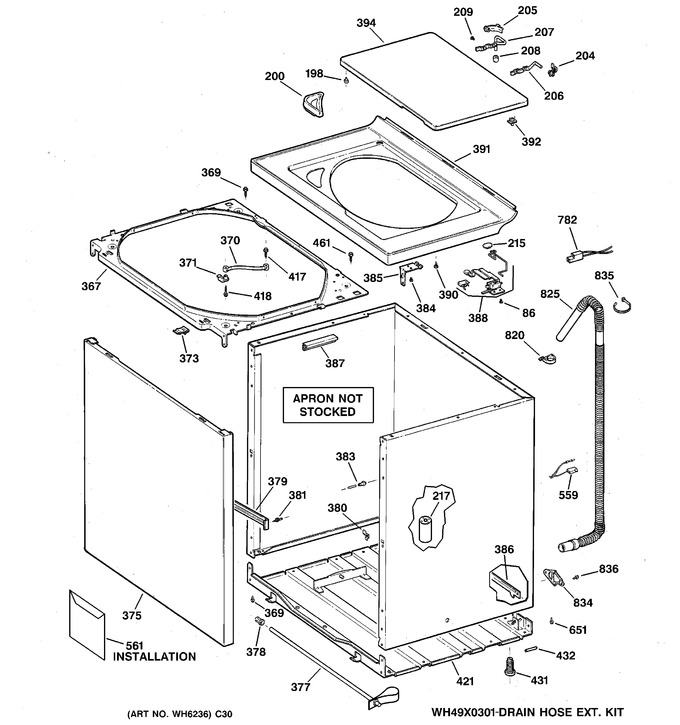

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 86 | WH2X940 | Scr 8-32 Tt Fl 1/2 S |  |
|||
| 198 | WH1X2722 | Bumper Lid | |
|||
| 200 | WH01X10057 | Funnel Bleach | |
|||
| 204 | WH1X2741 | Bushing Hinge (single) | |
|||
| 205 | WH01X10025 | Bushing Hinge-front Open | |
|||
| 206 | WH1X2740 | Wireform Hinge | |
|||
| 207 | WH1X2743 | Hinge Wireform (long) | |
|||
| 208 | WH1X2742 | Bumper Hinge | |
|||
| 209 | WH2X1211 | Screw | |
|||
| 215 | WH1X2089 | Knob Actuator | |
|||
| 217 | WH12X10212 | Capacitor Cmrw Ts 45/2 | |
|||
| 367 | WH46X364 | Weld Asm Rod Support | |
|||
| 369 | WH2X1217 | Scr 8-18 Ab Ihw 7/16 Sn | |
|||
| 370 | WH01X10046 | Strap Damping | |
|||
| 371 | WH1X2726 | Retainer Strap | |
|||
| 373 | WH02X10058 | Clip Locking | |
|||
| 375 | WH46X10042 | Panel Front Asm Wh | |
|||
| WH46X10051 | Panel Front Wh | |
||||
| 377 | WH46X344 | Bar Shipping | |
|||
| 378 | WH1X2745 | Button Plug | |
|||
| 379 | WH16X514 | Brace | |
|||
| 380 | WH2X1207 | Clip Ground | |
|||
| 381 | WH2X1190 | Stud Grounding | |
|||
| 383 | WH2X1189 | Pin Alignment | |
|||
| 384 | WH01X10109 | Scr 8-15 A 3/4 Sp Hxw | |
|||
| WH01X10170 | Scr 6-20 B Trt 3/8 S | |
||||
| 385 | WH1X2723 | Cover Clip | |
|||
| 386 | WH46X10094 | Bar Self Leveling | |
|||
| 387 | WH41X10036 | Conduit | |
|||
| 388 | WH12X1043 | Lid Switch Asm | |
|||
| 390 | WH1X2724 | Isolator | |
|||
| 391 | WH44X1169 | Cover Asm Finished Wh | |
|||
| 392 | WH1X2734 | Probe Lid Switch | |
|||
| 394 | WH44X10076 | Lid Asm Finished | |
|||
| 417 | WH2X694 | Scr 10-12 A Hx 1/2 S | |
|||
| 418 | WH02X10003 | Scr 8-18 B Ihw 1 S | |
|||
| 421 | WH46X10079 | Base Asm | |
|||
| 431 | WH2X1187 | Leg Leveling | |
|||
| 432 | WH2X1188 | Pin Roll | |
|||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr | |
|||
| 559 | WH12X538 | Housing Terminal | |
|||
| WD1X1459 | Insulator Hsng Term | |
||||
| 561 | WH49X10017 | Pk Pack Asm Installation | |
|||
| 651 | WH02X10123 | Scr 1/4-20 Tpt 1h 1/2 Sn | |
|||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) | |
|||
| 820 | WH1X2725 | Clip Anti-siphon | |
|||
| 825 | WH41X367 | Hose Drain External | |
|||
| 834 | WH16X513 | Retainer Hose | |
|||
| 835 | WH1X2594 | Strap | |
|||
| 836 | WH02X10002 | Scr 8-18 Ab Ihwp 7/8 S | |
