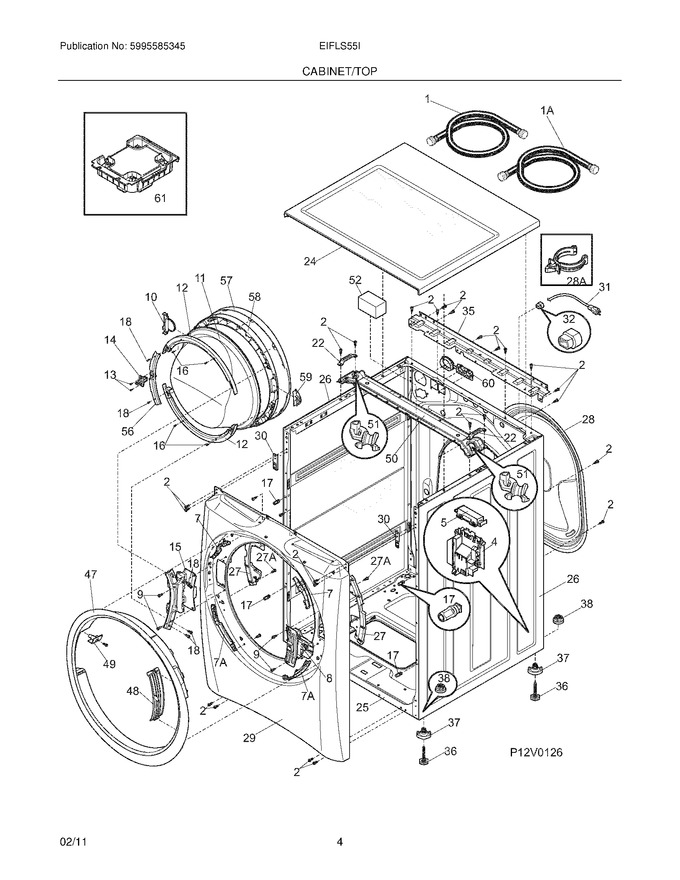

Diagram #	Part Number		Description	Series	Find a Video
1	5304518094		Hose,water Inlet ,cold   (Replaces:137015502)
2	131168200		Screw,pan Head ,8-18b X 0.31
F4	134618213		Control Board,motor   (Replaces:134618211)
5	134649700		Cover,motor Control ,housing
7	137046800		Bracket,trim Ring Mtg ,upper
F8	134629900		Door Lock
9	131302800		Screw,pan Head ,10-16ab X 0.500 ,locking   (Replaces:131303300)
10	134933900		Assembly,indicator ,complete
11	5304505107		Glass,door   (Replaces:134958900)
12	134696901		Frame,inner Door   (Replaces:134696900)
13	131302901		Screw,10-16 X 0.750
14	134937300		Assembly,strike ,complete
15	137107500		Hinge,door ,washer
16	134788000		Screw,no.8 X1.18 ,pan Hd
17	134638700		Clip,assembly
18	134790400		Screw,no.10x1.25 ,oval Head
22	134648500		Bracket-spring,retainer
24	134638510		Panel,work Top ,white
25	134646000		Base
26	134645910		Panel,side ,white
27	134879800		Protector,door Lock ,harness
28	134646200		Panel,service ,back
29	134618710		Panel,cabinet Front ,white
30	134858010		Bracket,front Panel ,rh
	134858000		Bracket,front Panel ,lh
F31	137011400		Power Cord,electric Svce ,120 16a
32	5303209428		Bushing,strain Relief
35	134713100		Bracket,top Panel Mtg. ,rear
36	134639100		Leveling Leg,screw
37	134617600		Bushing,leveling Leg
38	134639200		Nut,leveling Leg ,bushing
47	5304505715		Trim,front Panel   (Replaces:134618800)
48	134967200		Cover,trim Ring ,washer
49	134651200		Retainer,trim Ring
50	134645600		Bracket,tub Suspension
51	134655800		Protector,tub Suspension ,spring Hook ,(2)
52	131931202		Dampener,vibration ,foam
56	134925001		Cover,strike   (Replaces:134925000)
57	137067900		Lens,decorated Door   (Replaces:134932900)
58	137067900		Panel,outer Door   (Replaces:134697200)
59	134931500		Cover,indicator Hole
60	134372000		Grommet,dispenser ,back Panel
61	134652000		Damper,mass Vibration
1A	5304518094		Hose,water Inlet ,hot   (Replaces:137015503)
27A	134790600		Screw,no.10-24 X 1.0`` ,pan Hd
28A	134649400		Fastener,hose Clip ,external
7A	137046700		Bracket,trim Ring ,mounting
NI	134876501		Clip,hose,drain ,rear-panel   (Replaces:134876500)
	137292400		Harness,door Lock ,front Panel
	134994500		Cover,door Lock Plug
	134178901		Screw,8-18ab X 0.455
	131202300		Screw,10-16ab X 0.625
	134629400		Screw,mc5x8.5 Torx ,cabinet Mtg
	137380600		Screw,flat Head ,m5 X .8 X 17.5   (Replaces:134601900)
