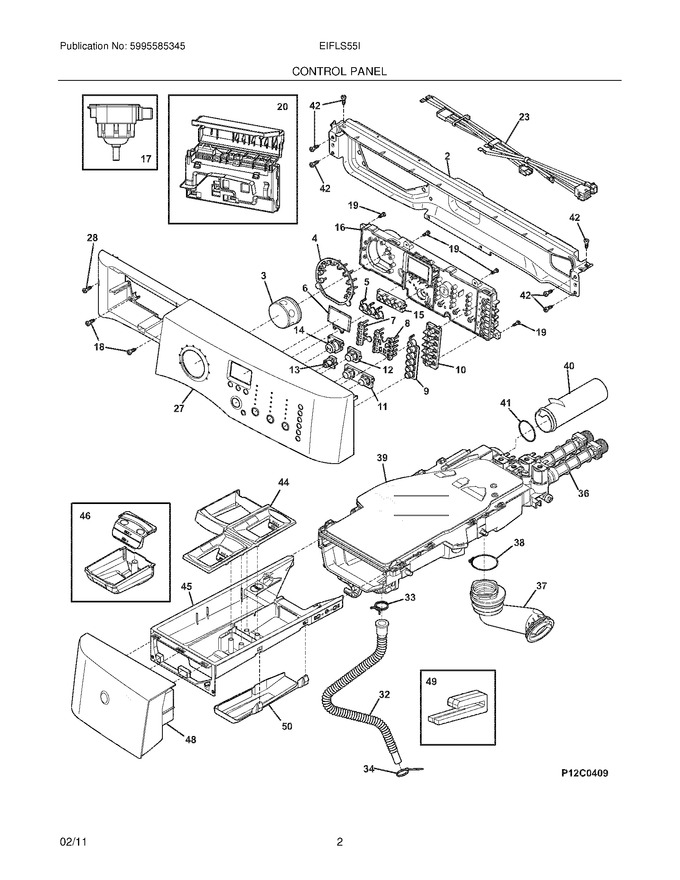

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Find a Video
2	134887400		Bracket,control Panel ,mounting
3	134766500		Knob,retracting ,complete Asmy
4	134907400		Pipe,knob Light
5	134872100		Ring,display Button ,light
6	134767700		Lens,lcd
7	134895900		Pipe,modifer Light ,group 1
8	134902200		Pipe,modifer Light ,group 2&3
9	134894200		Ring,option Button ,light
10	137032300		Button,option
11	137032200		Button,modifier ,button 2 & 3
12	137032100		Button,modifier ,button 1
13	137032000		Button,off
14	137015900		Button,start/pause
15	137031900		Button,display
F16	809020007		Control Board,printed Circuit ,with Housing   (Replaces:134994920)
F17	134762010		Switch,pressure
18	131302800		Screw,quadrex Ph ,10-16ab X 0.5
19	134402900		Screw,phillips ,6-19 X 0.650
F20	809019910		Control Assembly,main Electronic   (Replaces:137317221)
F23	137288900		Harness,wiring ,main
27	137377510		Panel,control Console ,white ,decorated
28	131302901		Screw,10-16 X 0.750
32	134625510		Hose,disp-to-bellows
33	134737300		Clamp   (Replaces:131306216)
34	5304464772		Cable Tie,5.60 Inch   (Replaces:5303321209)
F36	134637810		Valve Water,dispenser ,no Thermister
37	134625700		Hose,disp-to-tub
38	134372400		Clamp,tub Hose
39	134964020		Housing,dispenser ,valve,cover
40	134372100		Tube,disp-to-overflo
41	134372200		O-ring,overflow Tube
42	131168200		Screw,pan Head ,8-18b X 0.31
44	134638300		Drawer Cover,with Graphics   (Replaces:134638310)
45	5304505336		Drawer,dispenser   (Replaces:134638200)
46	137143800		Cup,dispenser ,liquid
48	5304535249		Drawer Assembly,dispenser ,white   (Replaces:137316410)
49	137105200		Guide,drawer Console
50	134638400		Conveyor,dispenser ,lower
NI	134371300		Gasket,disp-to-valve
	134178901		Screw,8-18ab X 0.455
